Brake Wheel Cylinder LHS – Toyota 6 Series Forklift 2–2.5t | 28.58mm Bore

SKU 1320-25
$46.00
$46.00

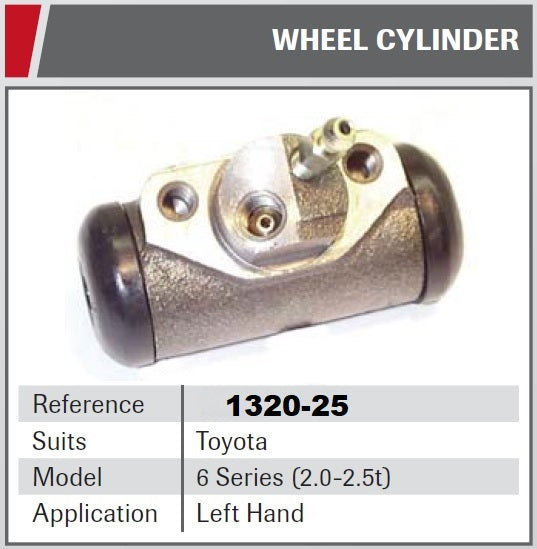

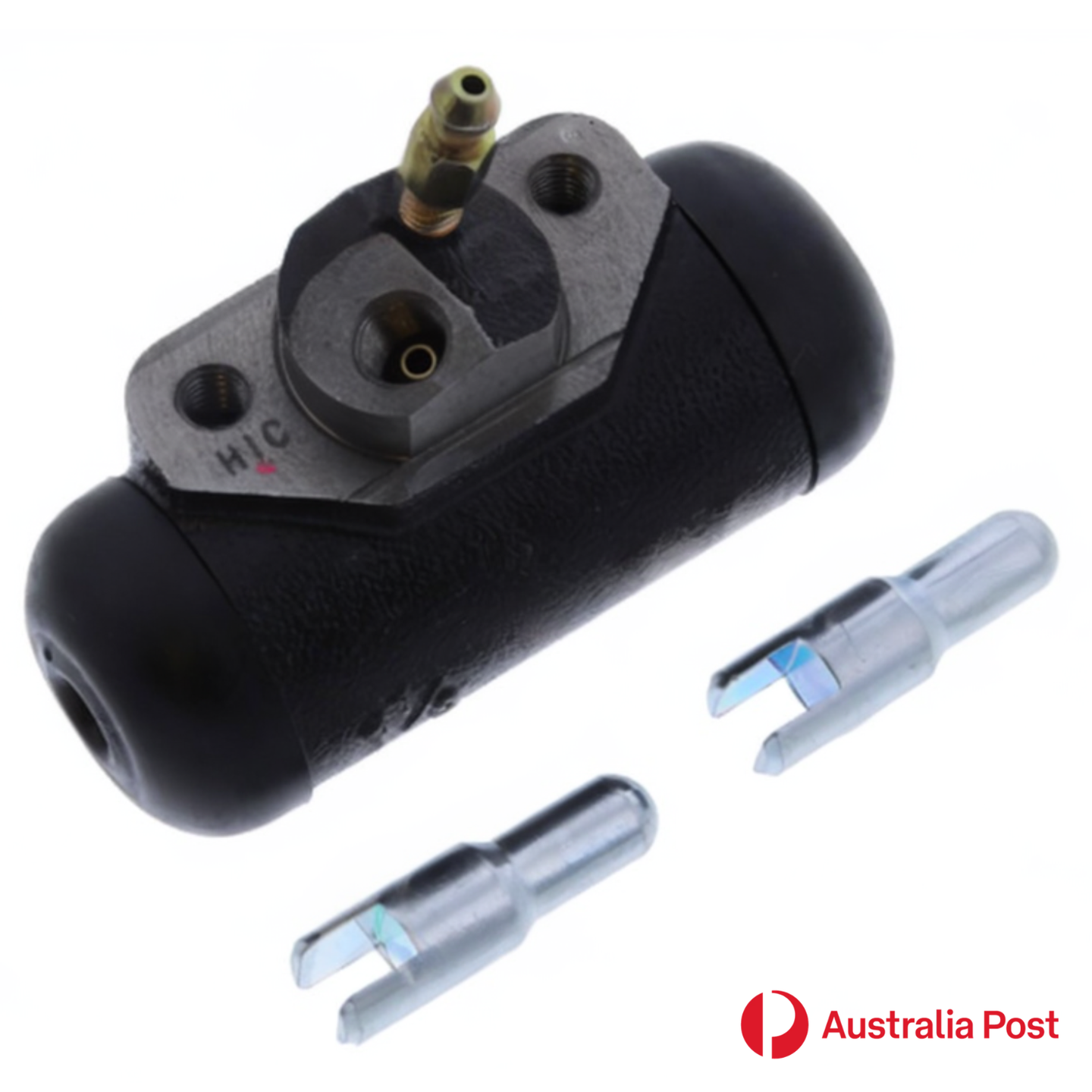

Brake Wheel Cylinder – Left-Hand Side (LHS) | Toyota 6 Series Forklift (2–2.5t)

A precision-engineered left-hand brake wheel cylinder built to OEM specification for Toyota 6 Series forklifts in the 2 to 2.5 tonne capacity range. Designed for correct LHS fitment with Type AK pin configuration.

Note: This listing is for the Left-Hand Side (LHS) only. The Right-Hand Side (RHS) cylinder is listed separately — please ensure you select the correct side: View RHS Wheel Cylinder – Toyota 6 Series.

Compatibility

  • Suits Toyota Forklifts: 6 Series (All)
  • Capacity: 2t to 2.5t
  • Side: Left-Hand Side (LHS)

Specifications

  • Bore Diameter: 1 1/8" (28.58 mm)
  • Length: 77.9 mm
  • Neck Diameter: 30 mm
  • Neck Height: 15 mm
  • Number of Fixation Holes: 2
  • Smallest Centre Distance: 44 mm
  • Thread Size (Main): M10 x 1mm pitch
  • Thread Size (Secondary): M8 x 1.25mm pitch
  • Inlet with Taper: Yes
  • Exit with Taper: No
  • Pin Type: Type AK
  • Fluid Type: Brake Fluid
