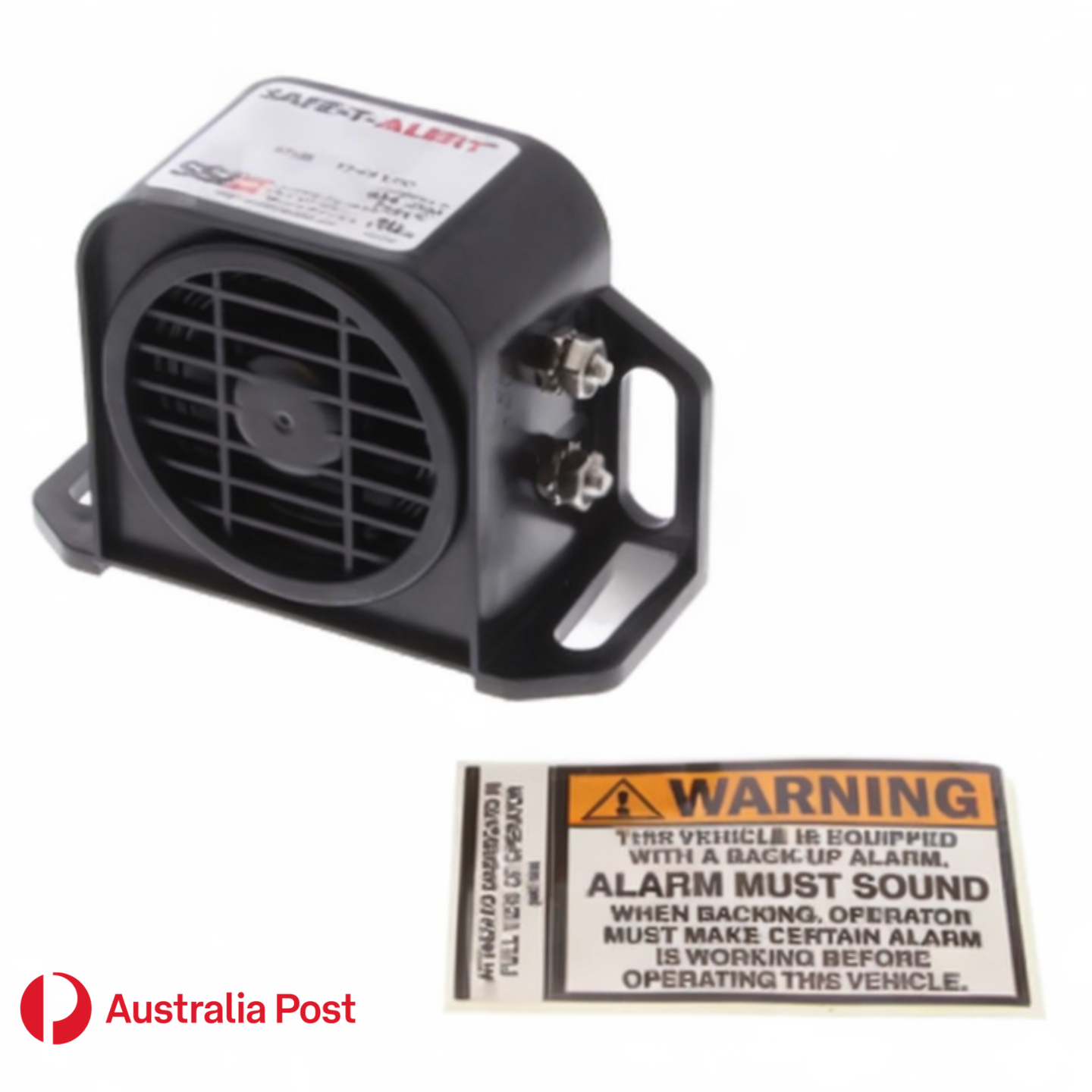

SAFE-T-ALERT BACK-UP ALARM | 12–48V DC | 97dB | MADE IN THE USA | FORKLIFT & INDUSTRIAL MACHINERY
When it comes to worksite safety, don't compromise. The Safe-T-Alert back-up alarm is a heavy-duty, American-made reverse alarm trusted by forklift operators and industrial facilities worldwide. With a powerful 97dB slow-pulse tone, wide voltage range of 12–48V DC, and multi-certification approvals including CE, SAE, UL-recognized, and E-approved — this is the alarm that meets the standard.
COMPATIBILITY
- Forklifts and reach trucks
- Industrial machinery and plant equipment
- Trucks, trailers, and heavy vehicles
- Any 12V, 24V, 36V, or 48V DC vehicle or equipment
KEY FEATURES
-
Made in the USA — Safe-T-Alert brand, trusted industrial quality
-
97dB slow-pulse beep — loud, clear, and unmistakable on busy worksites
-
12–48V DC wide voltage range — suits electric forklifts, diesel, and gas equipment
-
Stud-type connections — robust, vibration-resistant terminal connections
-
4-hole multi-mount — flexible installation with closed groove slots
-
CE, SAE, UL-recognised & E-approved — meets Australian and international safety standards
-
Work Safe approved — compliant for industrial and construction site use
-
Operating temp: -40°C to +85°C — rated for extreme environments
-
Compact and durable plastic housing — built for industrial conditions
-
Low current draw — only 0.1A max, 6W power consumption
ITEM CONDITION
New — unused, in original packaging
FULL SPECIFICATIONS
| Specification |
Detail |
| Type |
Back-Up Alarm |
| Brand |
Safe-T-Alert |
| Sound Type |
Beep (Slow Pulse) |
| Tone Frequency |
1440 Hz |
| Volume |
97 dB |
| Voltage Range |
12–48V DC |
| Nominal Voltage |
12V |
| Max Current |
0.1A |
| Power |
6W |
| Current Type |
DC |
| Broadband Sound |
No |
| Volume Adjustment |
Not Adjustable |
| Shape |
Special |
| Mounting |
Multiple Holes (4 total) |
| Groove Type |
Closed (4 grooves) |
| Length (L1) |
101.5 mm |
| Width (W1) |
41 mm |
| Height (H1) |
70.5 mm |
| Groove Length (L2) |
24.8 mm |
| Groove Max Width (W2) |
9.6 mm |
| Groove Min Width (W3) |
7.2 mm |
| Centre Distance H (C1) |
82.5 mm |
| Centre Distance V (C3) |
80 mm |
| Connections |
2 x Studs |
| Housing Material |
Plastic |
| Light |
No |
| Sticker |
No |
| Support/Bracket |
Not Included |
| CE Approved |
Yes |
| SAE Approved |
Yes |
| UL Recognised |
Yes |
| E-Approved |
Yes |
| RoHS Compliant |
No |
| Operating Temp |
-40°C to +85°C |
| Country of Origin |
USA |
POTENTIAL USES
- Forklift reverse safety compliance
- Industrial machinery and warehouse equipment
- Electric vehicle and golf cart applications (48V compatible)
- Heavy vehicle fleet safety upgrades
- Civil construction site compliance
SHIPPING & HANDLING
- Dispatched from Australia
- Combined postage available — contact us before purchasing multiple items
- Fast dispatch — same or next business day
Not sure if this fits? Message us before purchasing — we're happy to confirm compatibility with your vehicle or equipment.
Not sure if it fits? Send us your part number or a photo!
