Toyota 4Y Engine Water Pump - Suits Series 5 & 6 (Later Type)

SKU 1510-1
$98.00
$98.00

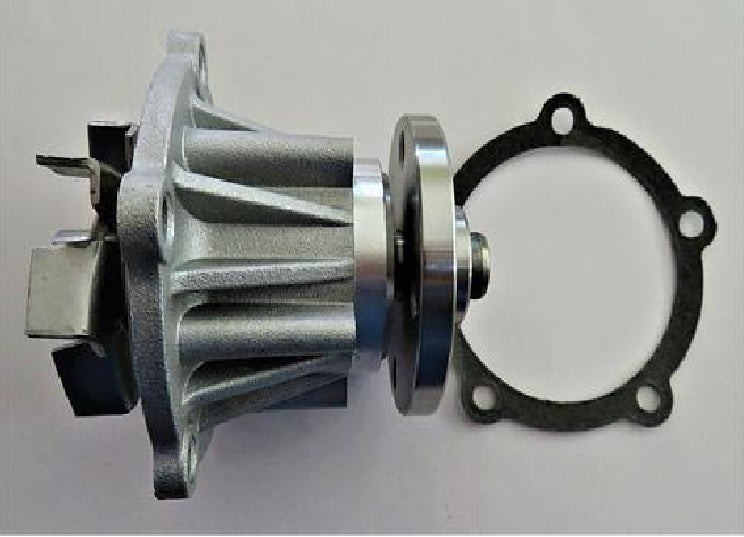

Replacement water pump suited to the Toyota 4Y engine — later type, suits Series 5 and 6 engines. Water pump and gasket included for a complete, ready-to-fit installation.

If you require the early type pump, please see our separate listing.

Please check the specifications below to confirm this is the correct part for your application. If you require a different water pump, please contact us.

Specifications

  • Sort: Flange
  • Type: A1
  • Total Height: 112.3 mm
  • Maximum Length: 95.5 mm
  • Shaft Diameter: 15.9 mm
  • Neck Diameter: 28.4 mm
  • Flange/Gear or Pulley Diameter: 68 mm
  • Total Mounting Holes in Flange: 4 (holes + thread)
  • Number of Threads: 4
  • Biggest Thread (TA1): M8
  • Metric Pitch: 1.25 mm
  • Smallest Centre Distance of Nearest Mounting Holes: 36 mm
  • Biggest Centre Distance of Nearest Mounting Holes: 36 mm
  • Thread of Mounting Cooling Fan: No
  • Gasket Included: Yes
