Toyota 4Y Forklift Flex Plate Flywheel & Ring Gear | OEM 32101-22800-71

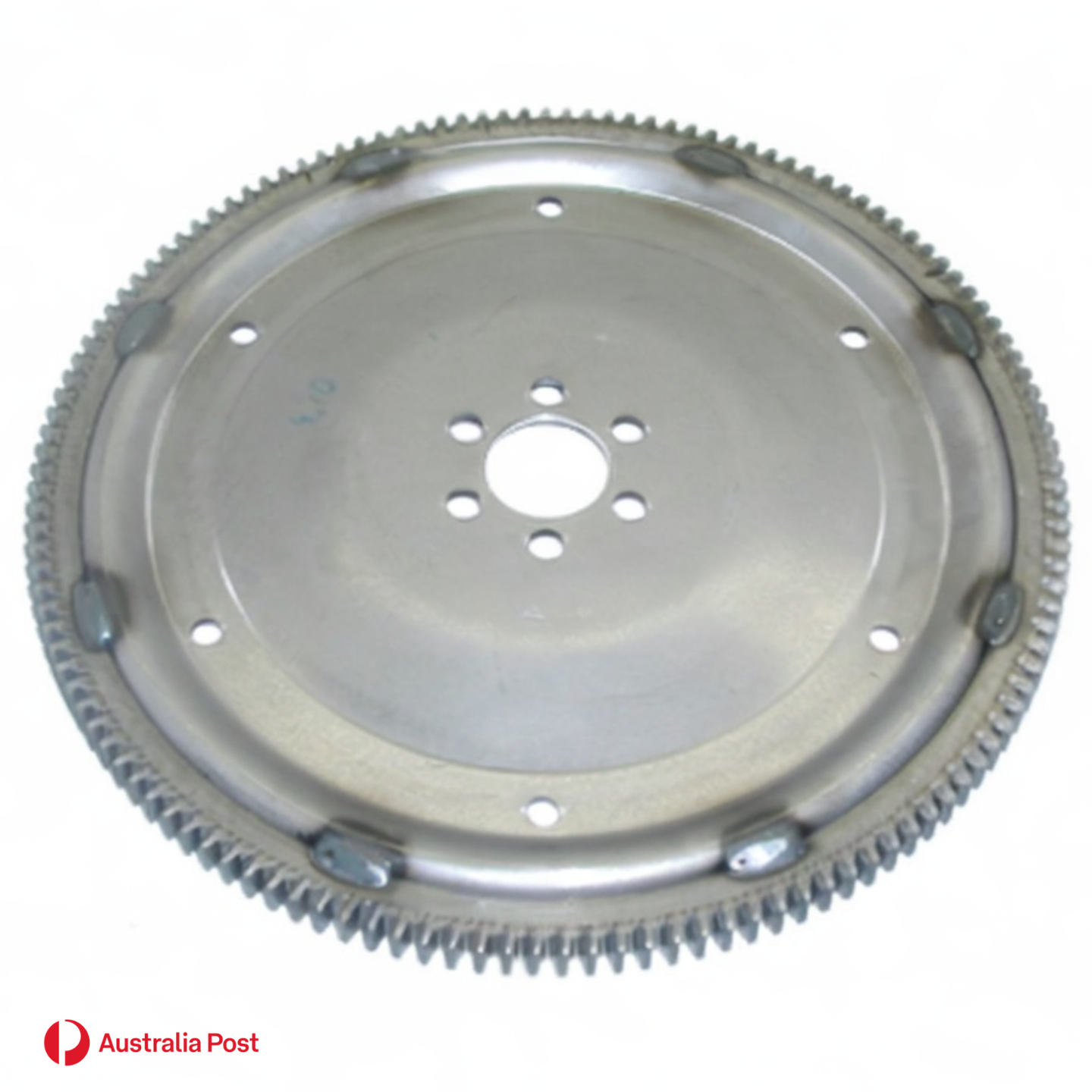

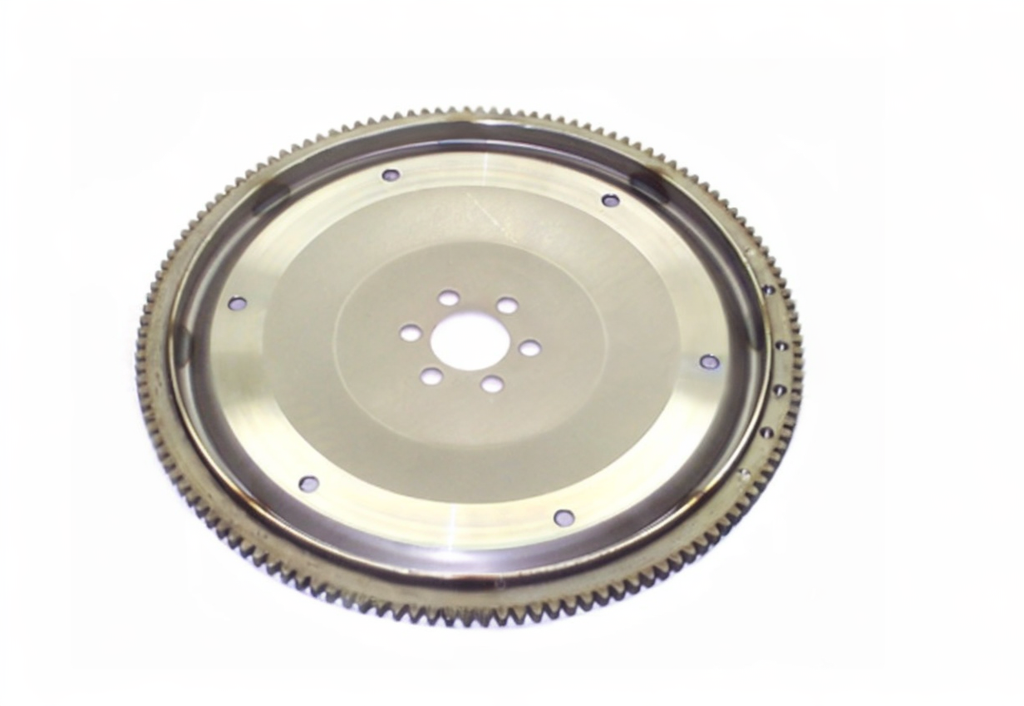

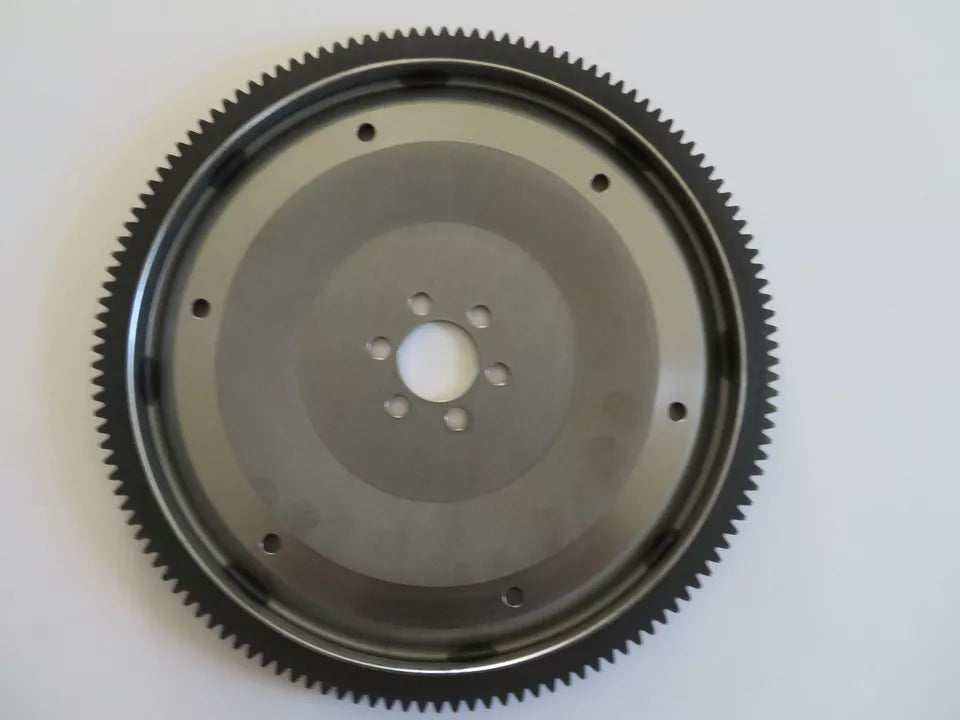

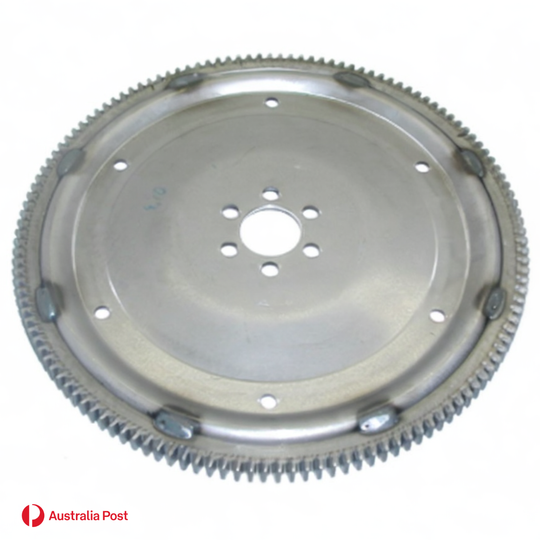

Toyota 4Y Forklift Flex Plate Flywheel – Drive Plate with Ring Gear

Don't pull your engine twice. Get it right the first time with this Toyota supplier-quality flex plate flywheel, complete with ring gear — engineered as a direct OEM-spec replacement for Toyota 4Y engine forklifts. Matched by OEM part number 32101-22800-71 for confident, accurate ordering.

Compatibility – Suits the Following Toyota Forklifts

• 6FG10, 6FG14, 6FG15, 6FG18, 6FG20, 6FG23, 6FG25, 6FG28, 6FG30
• 7FG10, 7FG15, 7FG18, 7FG20, 7FG25, 7FG30
• 8FG10, 8FG15, 8FG18, 8FG20, 8FG25, 8FG30

OEM Part Number

32101-22800-71

Specifications

• Type: Flex Plate / Drive Plate with Ring Gear
• Quality: Toyota Supplier Quality
• Inner Diameter: 41 mm
• Outer Diameter: 340.5 mm
• Ring Gear Width: 15 mm
• Total Height: 17 mm
• Number of Teeth: 133
• Tooth Type: Right-hand side
• Number of Fixation Holes: 6
• Hole Diameter: 11 mm
• Distance Between Holes: 62 mm

Condition

Brand new replacement part. Toyota supplier-quality manufacture — direct OEM-spec fitment with no modifications required. Ready to install straight from the box.

Key Features

• OEM part number 32101-22800-71 for precise cross-referencing
• Complete drive plate including ring gear — everything in one unit
• 133-tooth right-hand ring gear for reliable starter engagement
• 6-hole fixation pattern (11 mm holes, 62 mm spacing) for secure mounting
• 340.5 mm outer diameter — precision-matched to OEM dimensions
• Toyota supplier quality — manufactured to OEM tolerances
• Broad model compatibility across 6FG, 7FG, and 8FG series

Warranty

This product is backed by a 2-year warranty against manufacturing defects, giving you complete confidence in every installation.

Potential Uses

Suitable for Toyota 4Y engine-equipped forklifts across the 6FG, 7FG, and 8FG series, used in warehousing, logistics, manufacturing, and heavy industrial environments. The flex plate is a critical drivetrain component connecting the engine to the torque converter — a quality replacement ensures smooth power transfer and protects your transmission investment.

Order today and get your Toyota forklift back to full working capacity — first time, every time.
