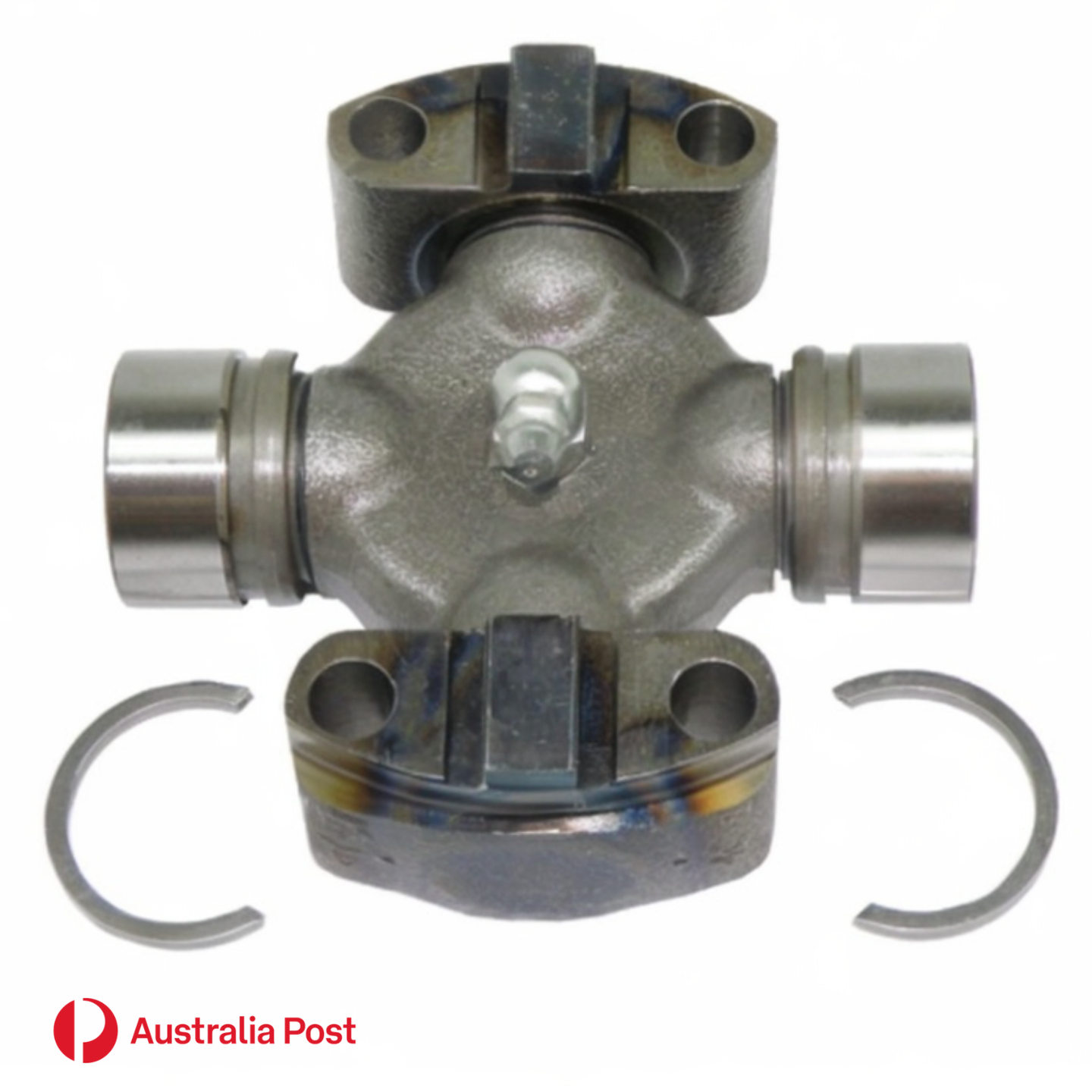

Toyota Forklift Drive Shaft U-Joint – 8FG / 8FD Series 10–30 | 9.5 mm Keyway
Restore smooth, reliable power transfer on your Toyota forklift with this precision-engineered drive shaft universal joint (U-joint), designed specifically for Toyota 8FG and 8FD Series 10 through 30 models. Featuring a 9.5 mm keyway, dual keyway mounting, and a grease nipple for ongoing lubrication, this is a direct-fit replacement built to handle the demands of daily industrial operation.
Manufactured by TotalCPM — a trusted name in forklift drivetrain components.
Compatibility
- Brand: Toyota Forklift
- Models: 8FG10, 8FG15, 8FG18, 8FG20, 8FG25, 8FG30 / 8FD10–8FD30 (Series 10–30)
Key Features
- With 2 keyways – secure, positive drive engagement
- Grease nipple present – allows ongoing lubrication for extended service life
- Direct-fit replacement – no modification required
- Manufactured by TotalCPM to OEM-spec dimensions
Specifications
- Brand: TotalCPM
- Type: U-Joint with 2 keyways
- Total Length: 93.30 mm
- Length Between Bearing Cups: 91.50 mm
- Diameter of Bearing Cup: 28.50 mm
- Keyway Mounting Hole Diameter: 8.70 mm
- Centre Distance of Keyway Mounting Hole: 37.00 mm
- Width of Key (Keyway): 9.50 mm
- Grease Nipple: Yes
Condition
New aftermarket replacement part. Manufactured by TotalCPM to OEM specifications for reliable fit and performance.
Potential Uses
Ideal for routine drivetrain maintenance, scheduled servicing, or emergency replacement on Toyota 8FG and 8FD Series 10–30 forklifts operating in warehouses, distribution centres, manufacturing facilities, and outdoor logistics environments.
Always verify your forklift model and driveshaft configuration before ordering. Contact us if you need assistance confirming fitment.
