Toyota Forklift Forward/Reverse Combination Switch 7FG FD 10-70

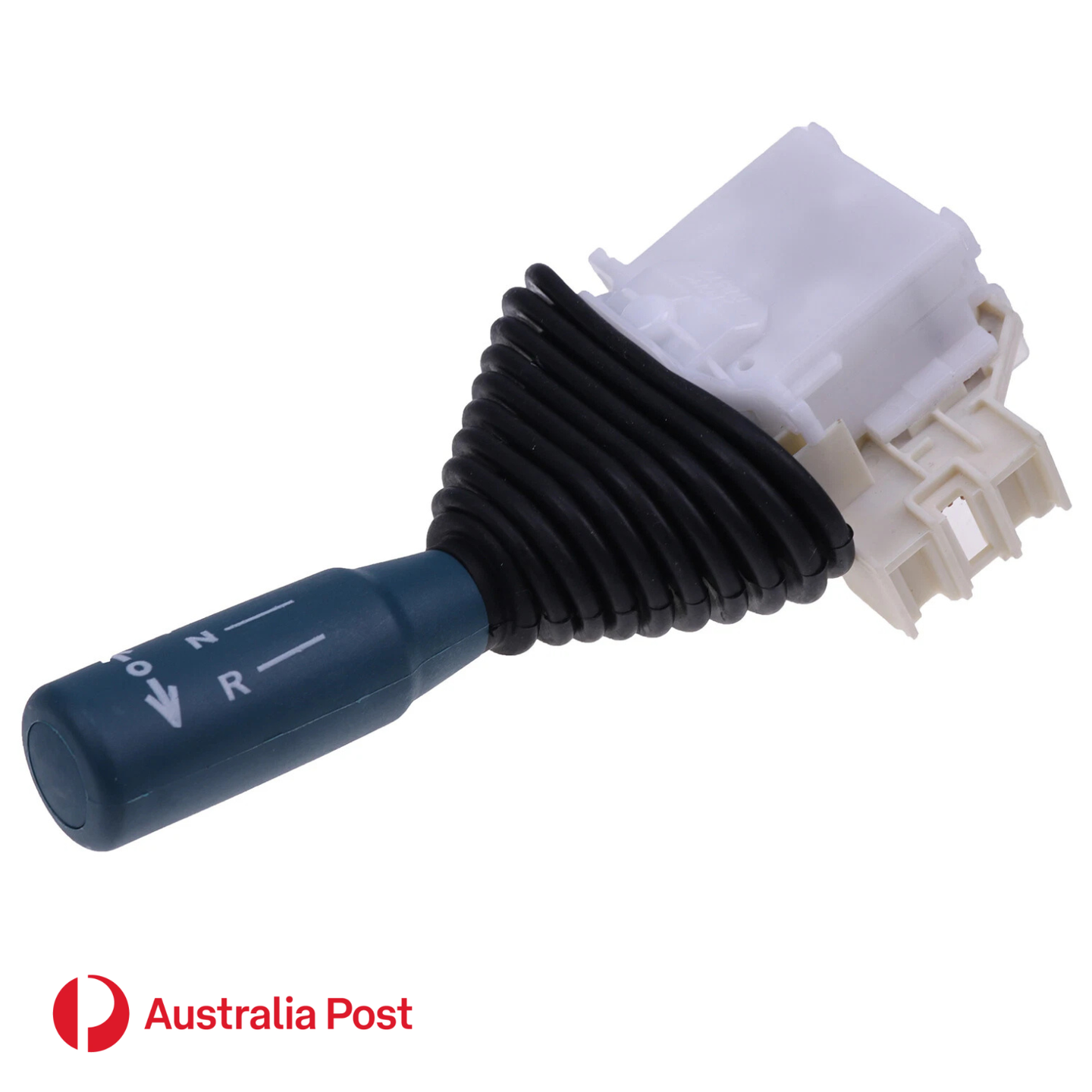

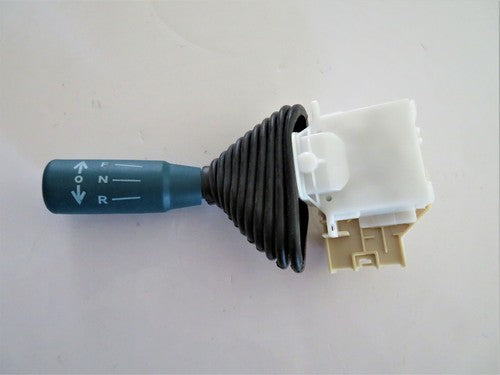

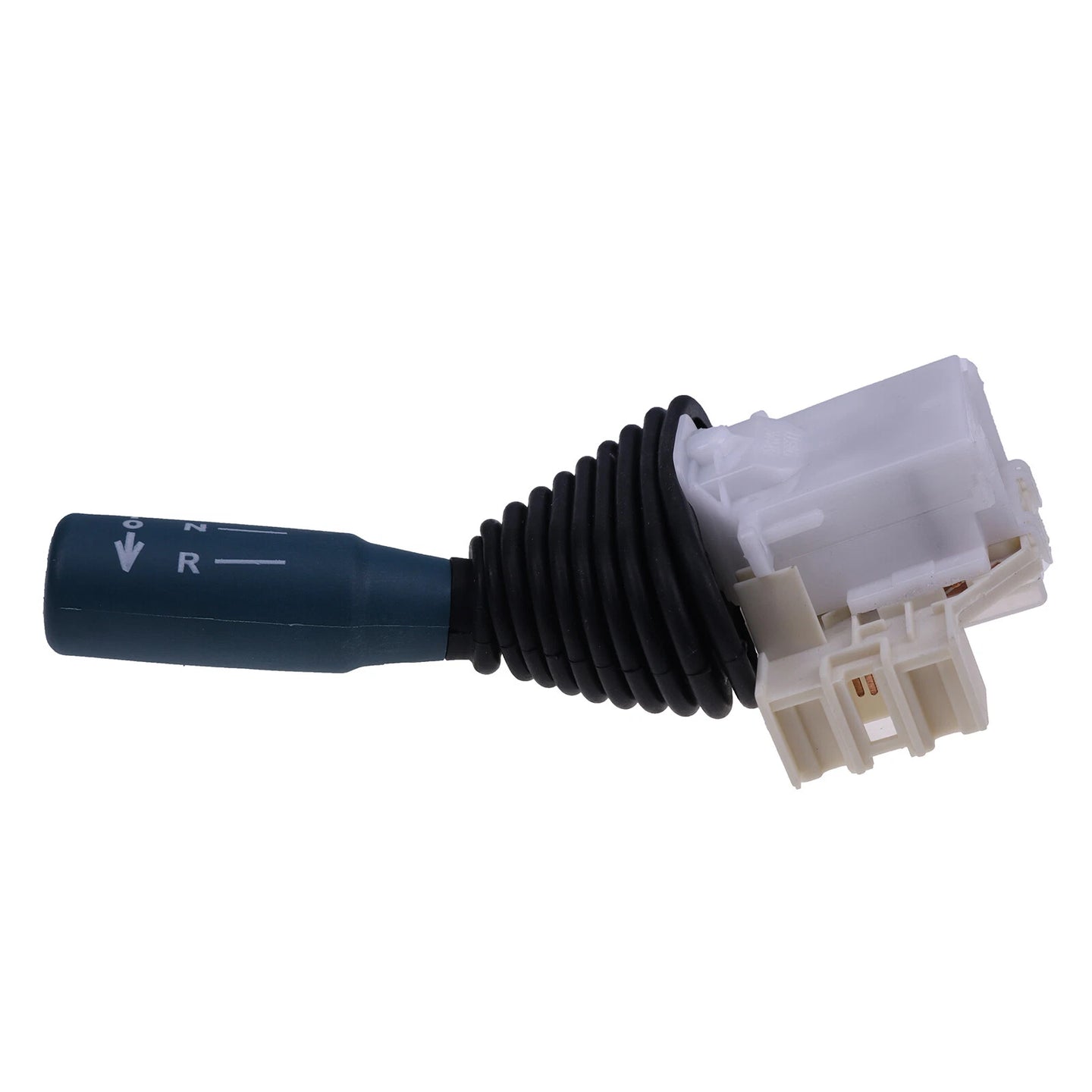

Toyota Forklift Forward/Reverse Combination Switch – 7FG/FD Series

Condition: New

Keep your Toyota forklift running at peak performance with this direct-replacement Forward/Reverse Combination Switch. Mounted on the steering column, this single-lever stalk switch gives operators precise, reliable directional control — engineered to OEM specification for a seamless fit across the Toyota 7FG and 7FD series.

Key Features

• Controls Forward, Neutral, and Reverse direction functions
• Steering column-mounted stalk design — ergonomic and operator-friendly
• Single connector plug — plug-and-play OEM-style replacement
• Single lever with 3 control positions: Forward / Neutral / Reverse
• Durable construction suited to heavy-duty warehouse and industrial use

Compatibility

• Brand: Toyota
• Models: 7FG / 7FD 10, 14, 15, 18, 20, 25, 30, 35, 40, 45, 50, 60, 70

Specifications

• Brand: Total CPM
• Total Length: 190 mm
• Total Width: 88 mm
• Total Height: 100 mm
• Mounting Holes: 2 holes, 3.4 mm diameter
• Centre Distance Between Mounting Holes: 62.0 mm

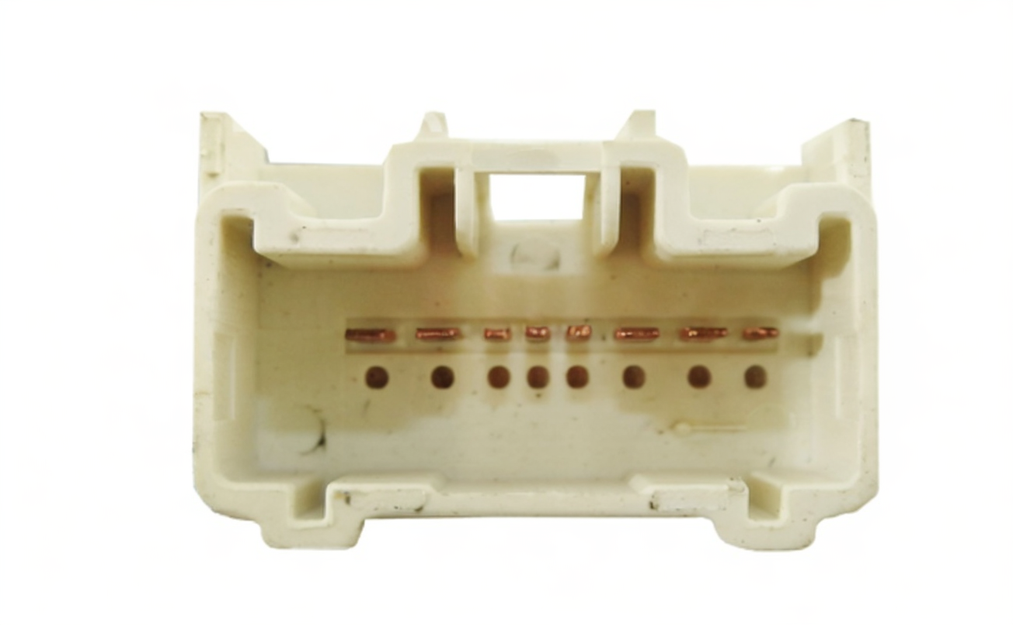

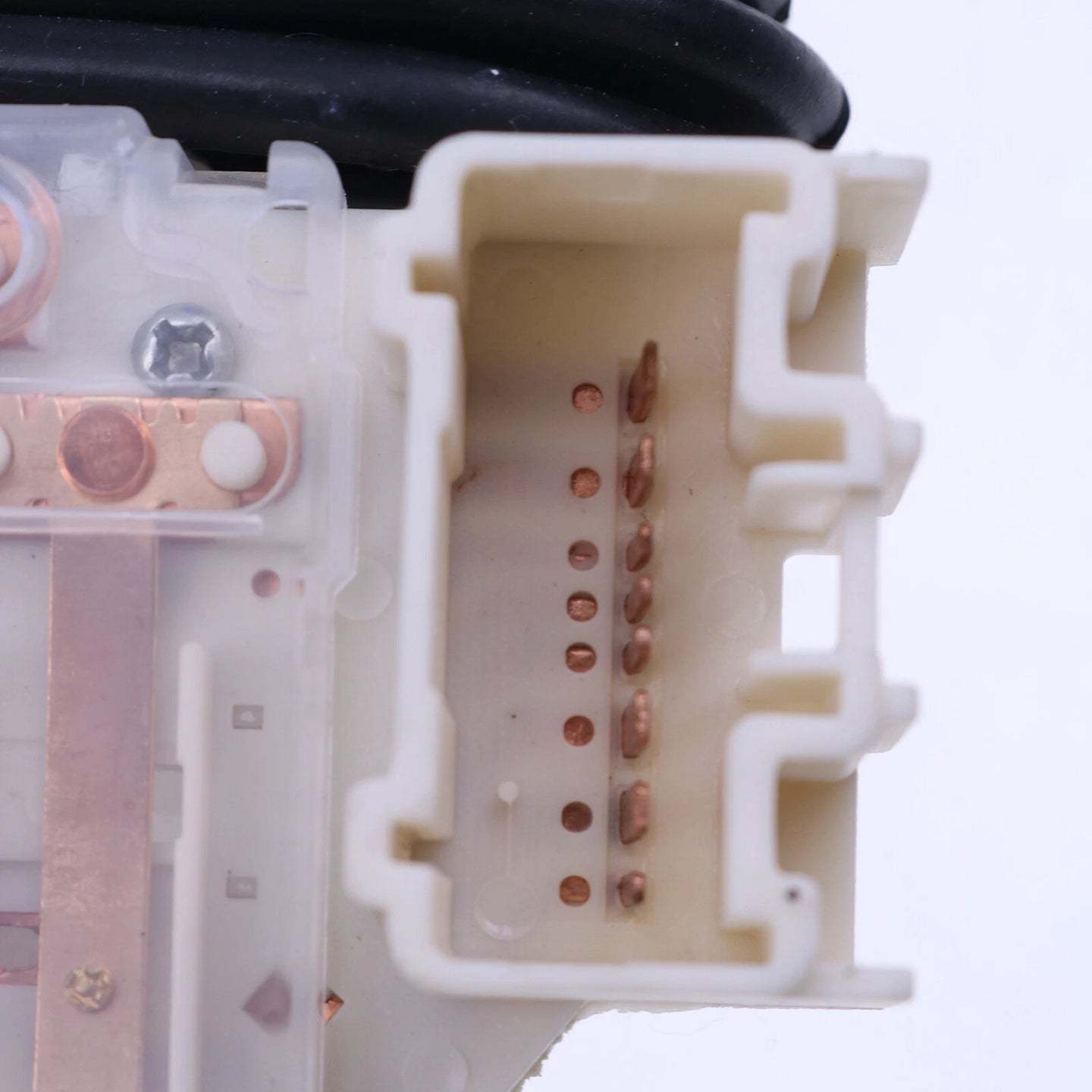

• Connection Type: Connector (1 connection)
• Number of Levers: 1
• Control Functions: Forward / Neutral / Reverse

Potential Uses

• Direct OEM-style replacement for worn or faulty directional switches
• Scheduled preventive maintenance and fleet servicing
• Parts inventory for Toyota forklift fleet operators and service workshops

Order today and restore full directional control to your Toyota forklift — fast, reliable, and built to last.
