TCM Forklift Tail Light Assembly – 12V | N2S & N16 Series | Rectangular | Work-Safe Compliant
Keep your TCM forklift fully lit and workplace-compliant with this complete rectangular tail light assembly. Designed to suit TCM N2S (2.0–2.5t) and N16 (1.5–1.8t) forklifts, this direct-fit unit combines rear, stop, reversing, and reflector functions in one robust housing. Mountable horizontally or vertically on either side, and supplied with bulbs included and a replaceable plastic lens — ready to install straight out of the box.
Condition
New – complete tail light assembly supplied in original packaging with bulbs included. Completely work-safe compliant.
Key Features
- Suits TCM forklift models: N2S (2.0–2.5t) and N16 (1.5–1.8t)
- Functions: Rear light, Stop light, Reversing light, Reflector
- Rectangular housing – horizontal and vertical mounting, both sides mountable
- Voltage: 12V (min 12V / max 12V)
- Incandescent technology
- M8 external thread, right-hand, 0.8mm pitch – secure built-up attachment
- 2 mounting points with 175 mm centre distance

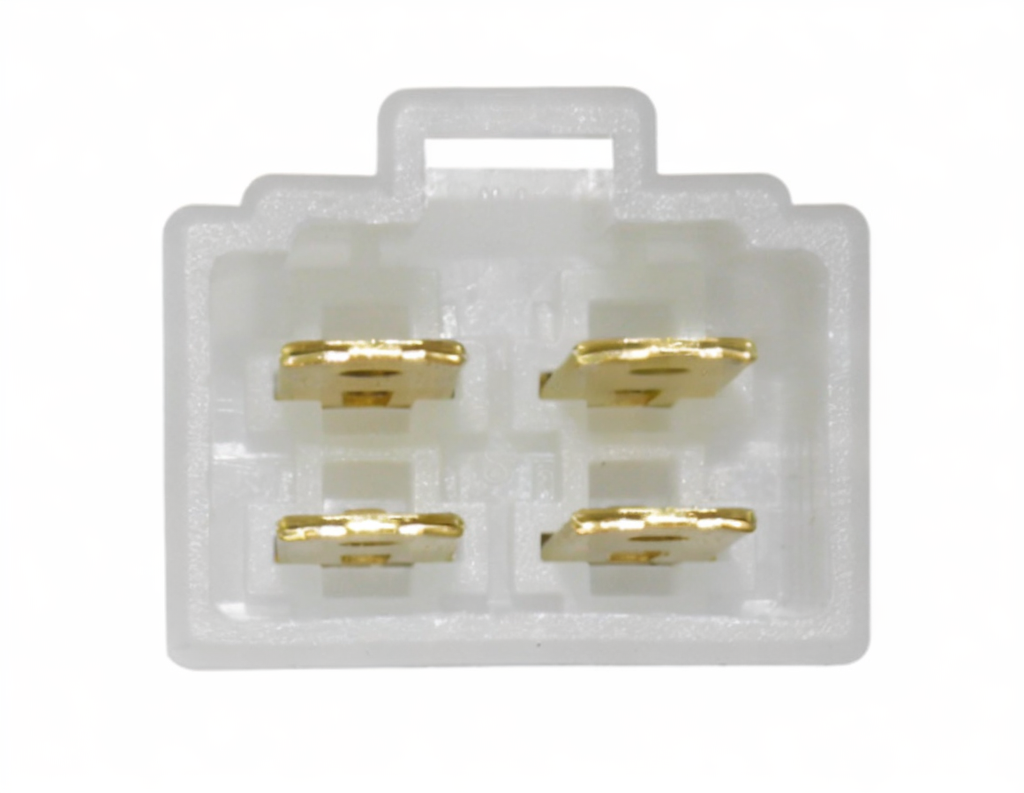

- 4-pin connector (1 connector)
- Wire length: 520 mm
- Replaceable plastic lens for easy maintenance
- Bulbs included
- Completely work-safe compliant
Dimensions
| Dimension | Detail |
|---|---|
| Total Length (L1) | 200 mm |
| Housing Length (L2) | 200 mm |
| Total Height (H1) | 53 mm |
| Housing Height (H2) | 53 mm |
| Total Width (W1) | 65 mm |
| Housing Width (W2) | 55 mm |
| Wire Length (L3) | 520 mm |
| Mount Centre Distance (C1) | 175 mm |
Specifications
| Specification | Detail |
|---|---|
| Shape | Rectangular |
| Voltage | 12V |
| Technology | Incandescent |
| Mounting | Horizontal & vertical, both sides |
| Attachment | Built-up, M8 right-hand thread (0.8mm pitch) |
| Number of Mounts | 2 |
| Connector Pins | 4-pin (1 connector) |
| Rear Light | Yes |
| Stop Light | Yes |
| Indicator | No |
| Reversing Light | Yes |
| Fog Light | No |
| Reflector | Yes (non-triangular) |
| Lens Material | Plastic (replaceable) |
| Bulbs Included | Yes |
| Bracket | Not included |
| Compliance | Work-safe compliant |
Compatibility
Designed to suit the following TCM forklift models:
- N2S – 2.0 to 2.5 tonne
- N16 – 1.5 to 1.8 tonne
If you are unsure whether this assembly suits your specific machine, please contact us with your forklift model and serial number and we will confirm compatibility before you order.
Potential Uses
Ideal as a direct replacement for a damaged, broken, or non-compliant tail light assembly on TCM N2S and N16 forklifts. Essential for maintaining workplace safety and lighting compliance in warehouses, distribution centres, manufacturing plants, and logistics operations. A trusted solution for fleet maintenance managers and workshop technicians keeping TCM forklift fleets safe and work-safe compliant.
2-Year Warranty
This tail light assembly is backed by a 2-year warranty against manufacturing defects, giving you complete confidence in your purchase. Our team is here to support you throughout the life of the product.
Order today for fast dispatch and restore full lighting compliance to your TCM forklift.
