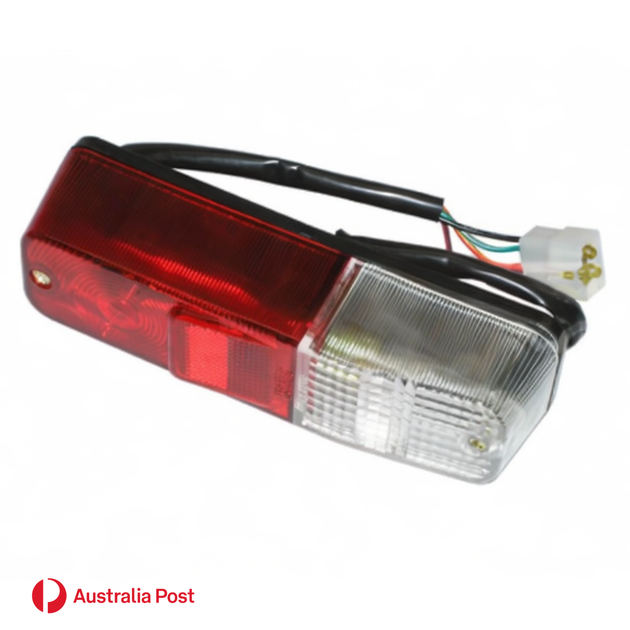

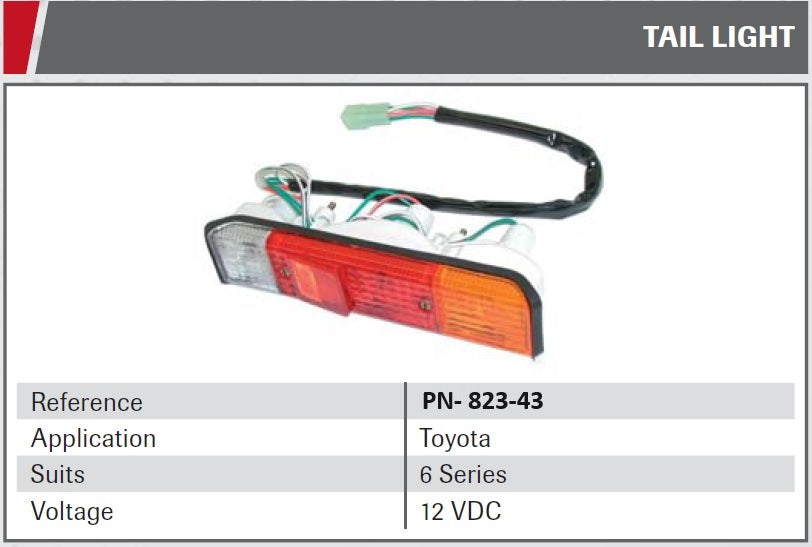

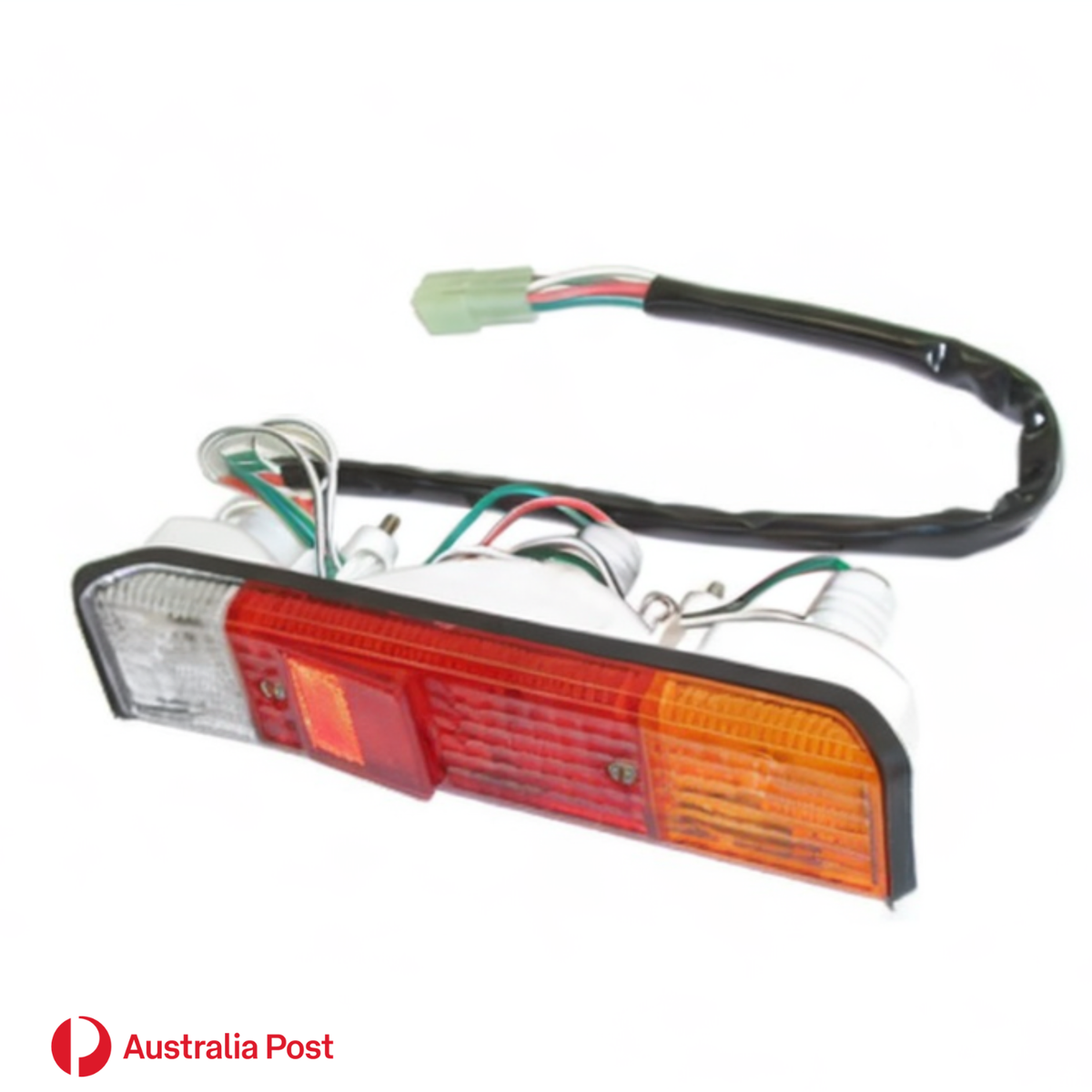

Toyota 6 Series Forklift Complete Tail Lamp Assembly – 12V | Stop, Indicator & Reverse Light
Restore full rear lighting compliance to your Toyota 6 Series forklift with this complete tail lamp assembly. Featuring stop, indicator, reversing, and rear light functions in a single unit, this direct-fit replacement is built to last and mounts to either side of your machine. Supplied with bulbs included and a replaceable plastic lens — everything you need to get your forklift back to safe, compliant operation.
Note: A replacement lens kit is also available separately — please see our store for details.
Condition
New – complete tail lamp assembly supplied in original packaging with bulbs included.
Key Features
- Complete tail lamp assembly – suits Toyota 6 Series forklifts
- Functions: Rear light, Stop light, Indicator, Reversing light, Reflector
- Voltage: 12V (min 12V / max 12V)
- Rectangular housing – vertical mounting, both sides mountable (left or right)
- 2 mounting points with 104 mm centre distance

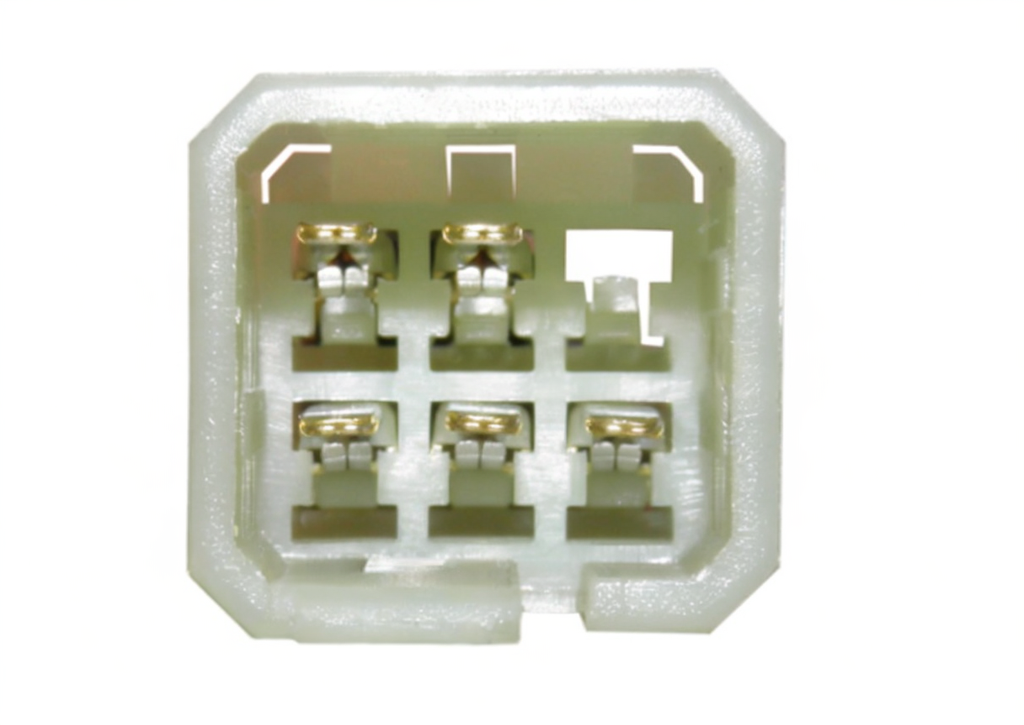

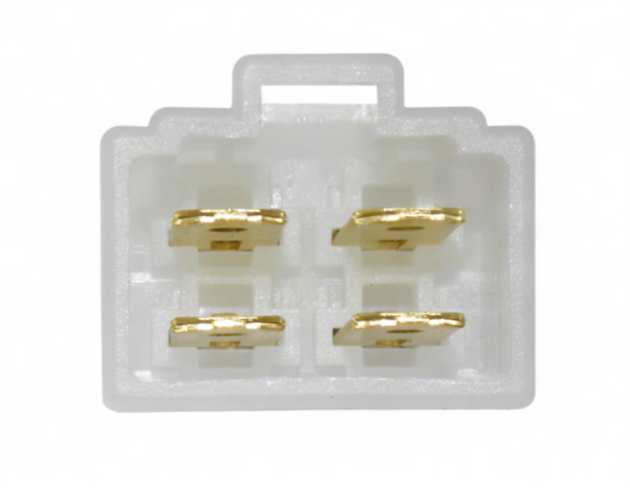

- 5-pin connector (1 connector)
- Wire length: 740 mm
- Replaceable plastic lens for easy maintenance
- Bulbs included
- No bracket required – built-in attachment position
Dimensions
| Dimension | Detail |
|---|---|
| Total Length (L1) | 243 mm |
| Housing Length (L2) | 243 mm |
| Total Height (H1) | 55 mm |
| Housing Height (H2) | 55 mm |
| Total Width (W1) | 90 mm |
| Housing Width (W2) | 27 mm |
| Wire Length (L3) | 740 mm |
| Mount Centre Distance (C1) | 104 mm |
Specifications
| Specification | Detail |
|---|---|
| Shape | Rectangular |
| Voltage | 12V |
| Mounting | Vertical, both sides |
| Number of Mounts | 2 |
| Connector Pins | 5-pin (1 connector) |
| Rear Light | Yes |
| Stop Light | Yes |
| Indicator | Yes |
| Reversing Light | Yes |
| Fog Light | No |
| Reflector | Yes (non-triangular) |
| Lens Material | Plastic (replaceable) |
| Bulbs Included | Yes |
| Bracket | Not required |
Compatibility
Designed to suit Toyota 6 Series forklifts. Mountable on both left and right sides. If you are unsure whether this assembly suits your specific machine, please contact us with your forklift model and serial number and we will confirm compatibility before you order.
Potential Uses
Ideal as a direct replacement for a damaged, broken, or non-compliant tail lamp assembly on Toyota 6 Series forklifts. Essential for maintaining workplace safety compliance in warehouses, distribution centres, manufacturing plants, and logistics operations. A trusted solution for fleet maintenance managers and workshop technicians keeping their Toyota forklift fleet roadworthy and compliant.
2-Year Warranty
This tail lamp assembly is backed by a 2-year warranty against manufacturing defects, giving you complete confidence in your purchase. Our team is here to support you throughout the life of the product.
Order today for fast dispatch and restore full lighting compliance to your Toyota 6 Series forklift.
