Brake Master Cylinder – Toyota 3FD14/15/18, 02-FG18, 3FD10, 40-4FG10 | 19mm

Brake Master Cylinder – Toyota Forklift 3FD & FG Series (1.5–1.8t)

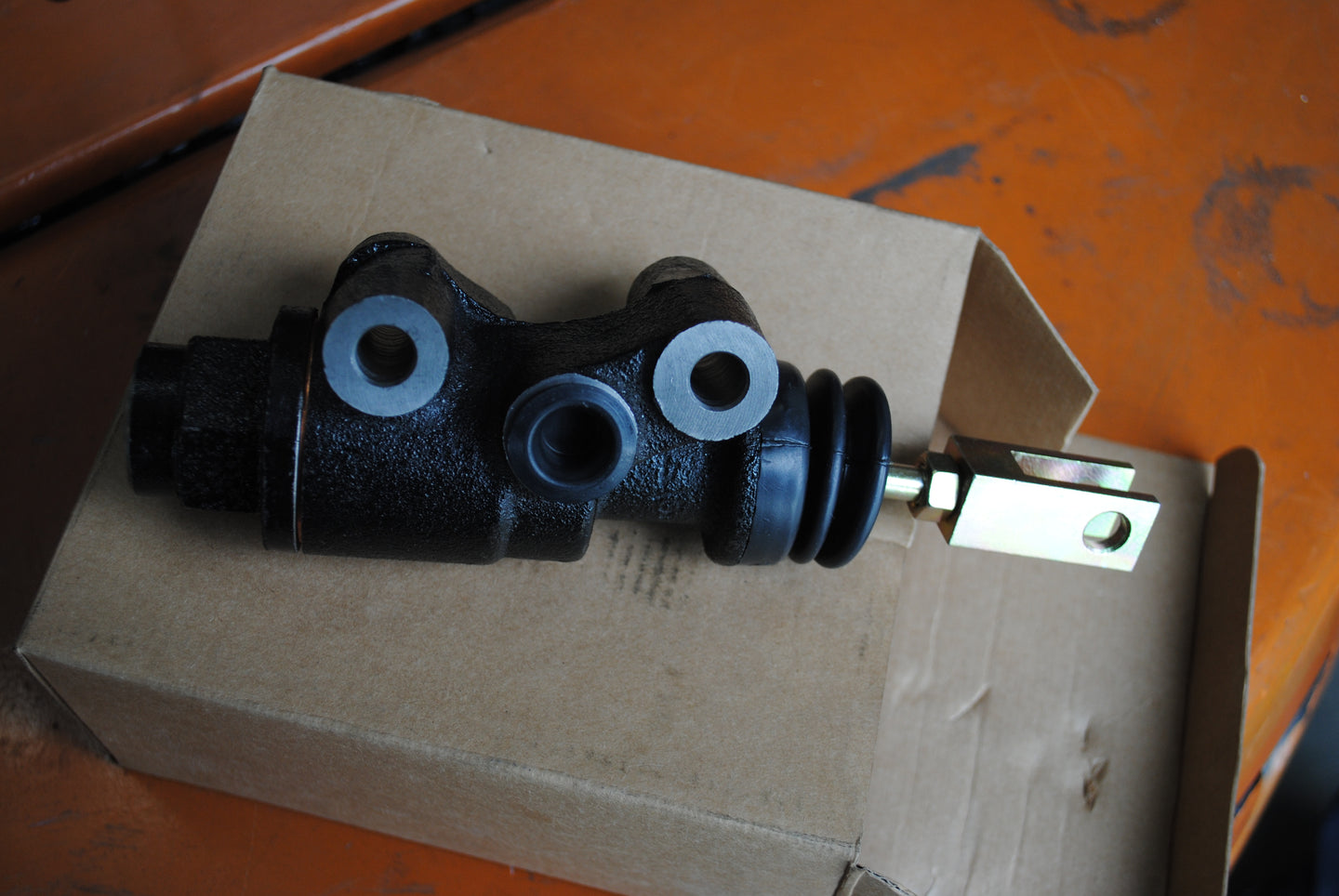

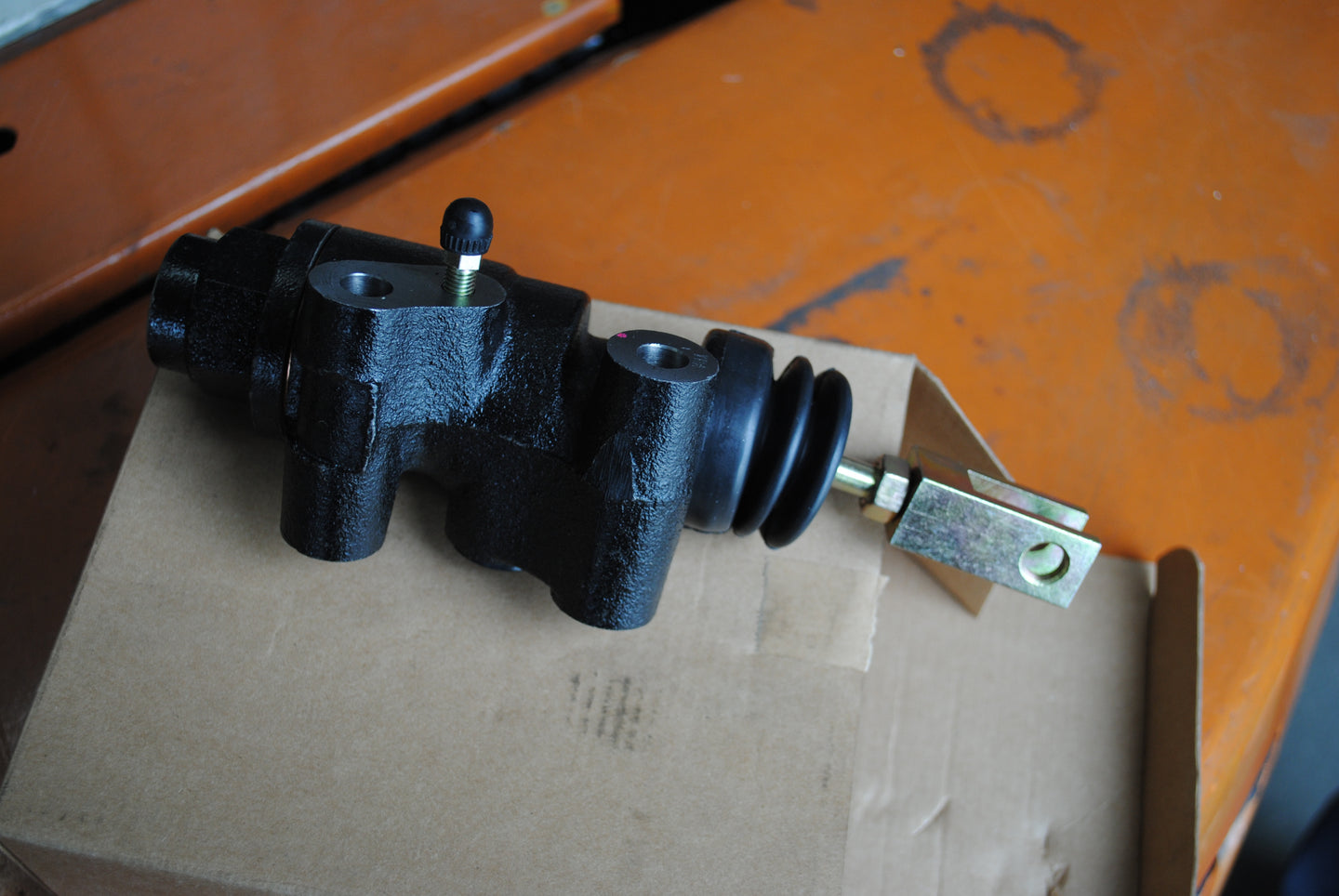

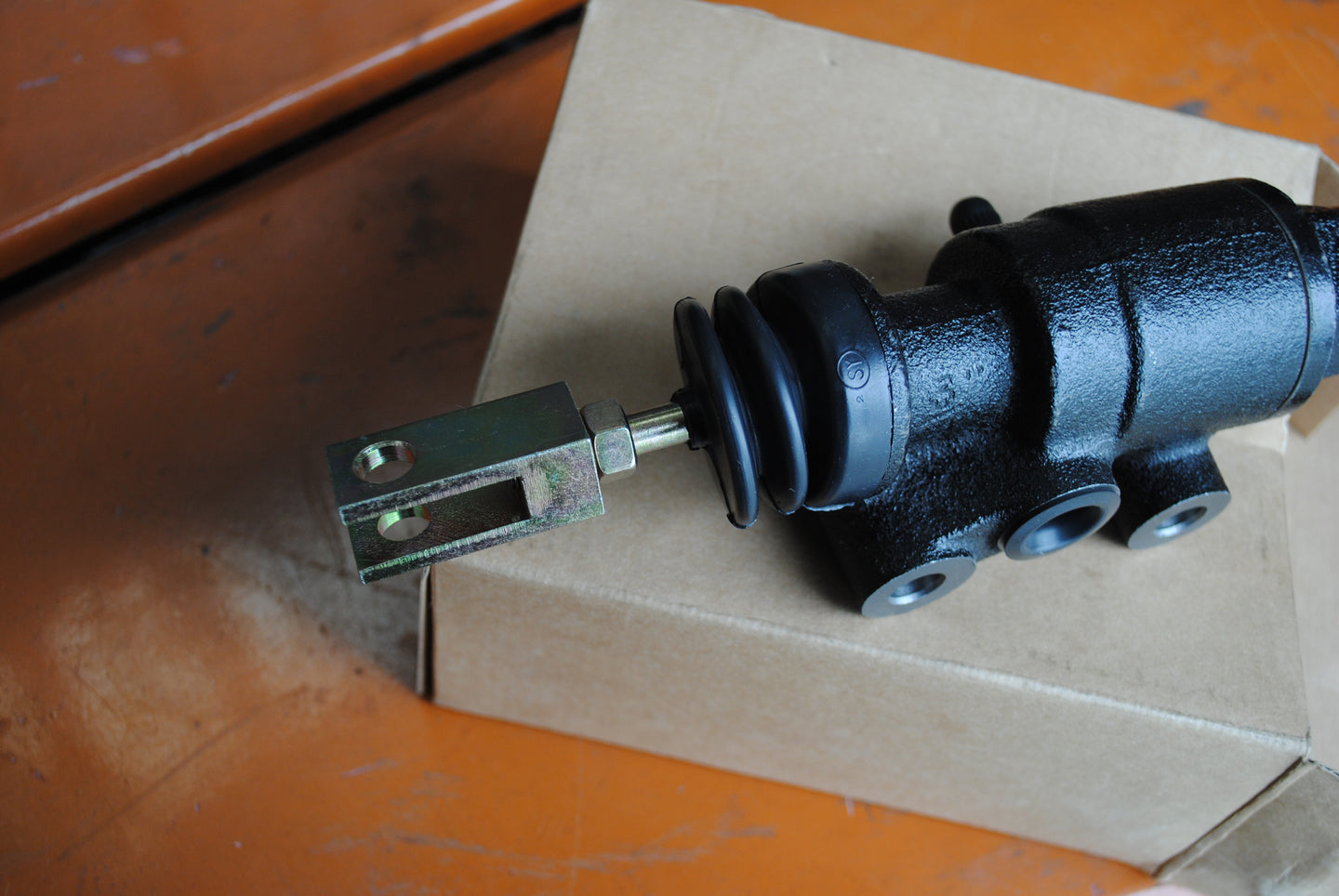

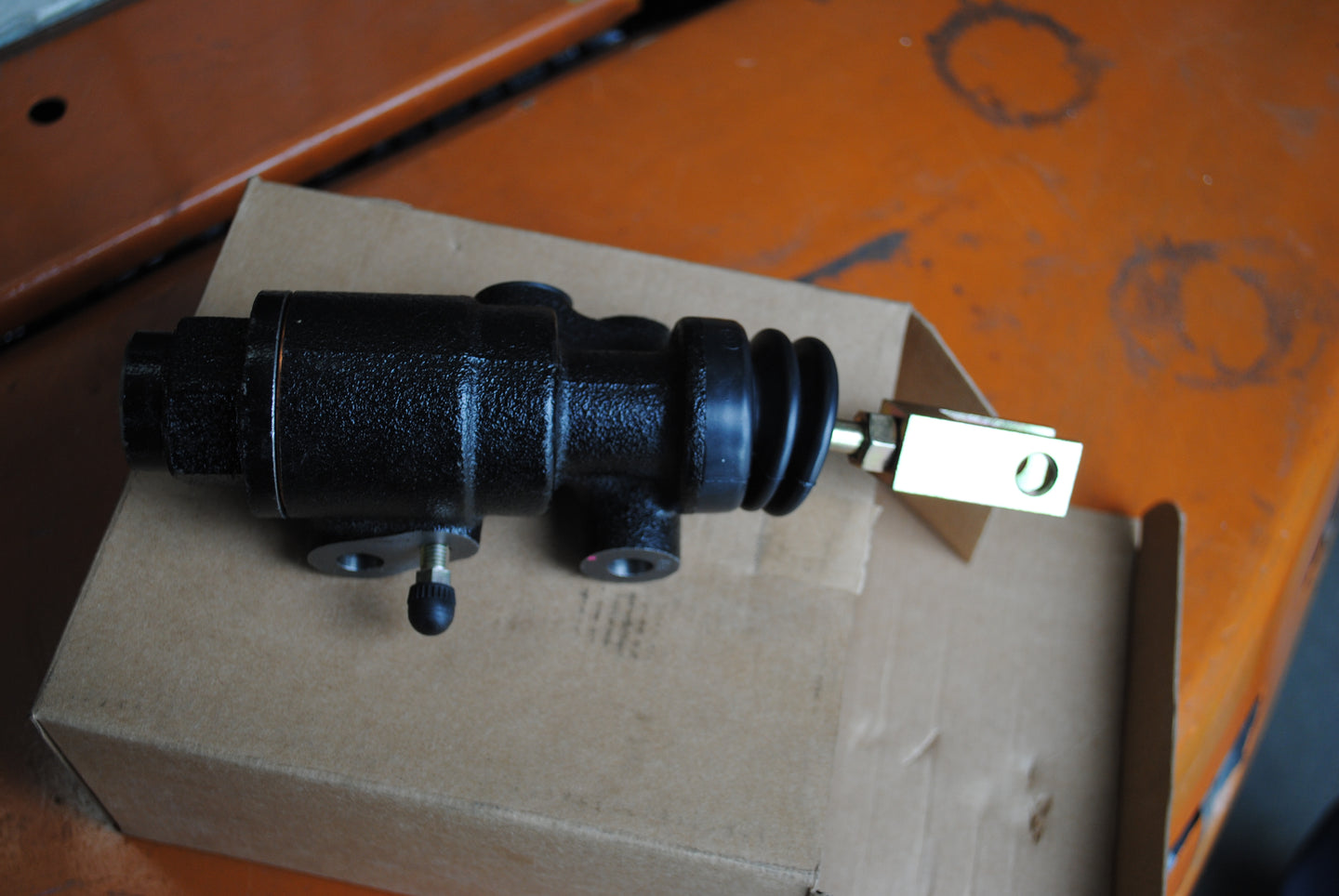

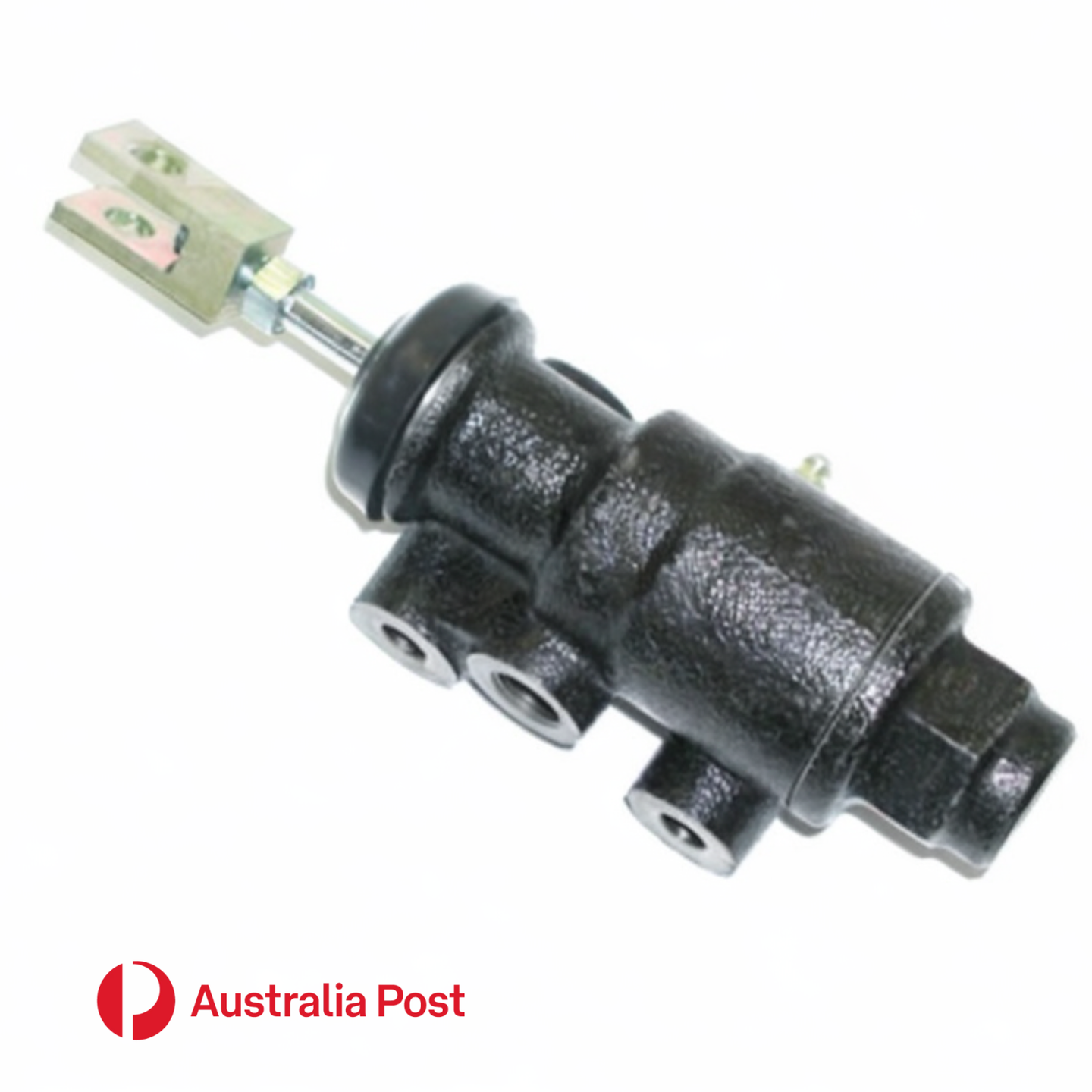

A direct-replacement brake master cylinder from TotalCPM, precision-engineered to OEM specification for Toyota 3FD and FG Series forklifts in the 1.5 to 1.8 tonne capacity range. Supplied complete with pushrod for a ready-to-fit installation with no additional components required.

Compatible Models

• Toyota 3FD10
• Toyota 3FD14
• Toyota 3FD15
• Toyota 3FD18
• Toyota 02-FG18
• Toyota 40-4FG10

Specifications

• Brand: TotalCPM
• Flange Type: TY-FL A
• Bore Diameter: 3/4" (19.05 mm)
• Total Length: 138 mm
• Smallest Centre Distance: 65 mm
• Neck Diameter: 44 mm
• Number of Exit Ports: 1 (AT-PR)
• Fluid Type: Brake Fluid (R-H)
• Supplied with: Pushrod

Why This Part?

With a wider 44mm neck diameter compared to other 19mm bore units in the range, this cylinder is specifically dimensioned for the 3FD and early FG model Toyota forklifts. Always verify your model number against the compatibility list above before ordering to ensure correct fitment.
