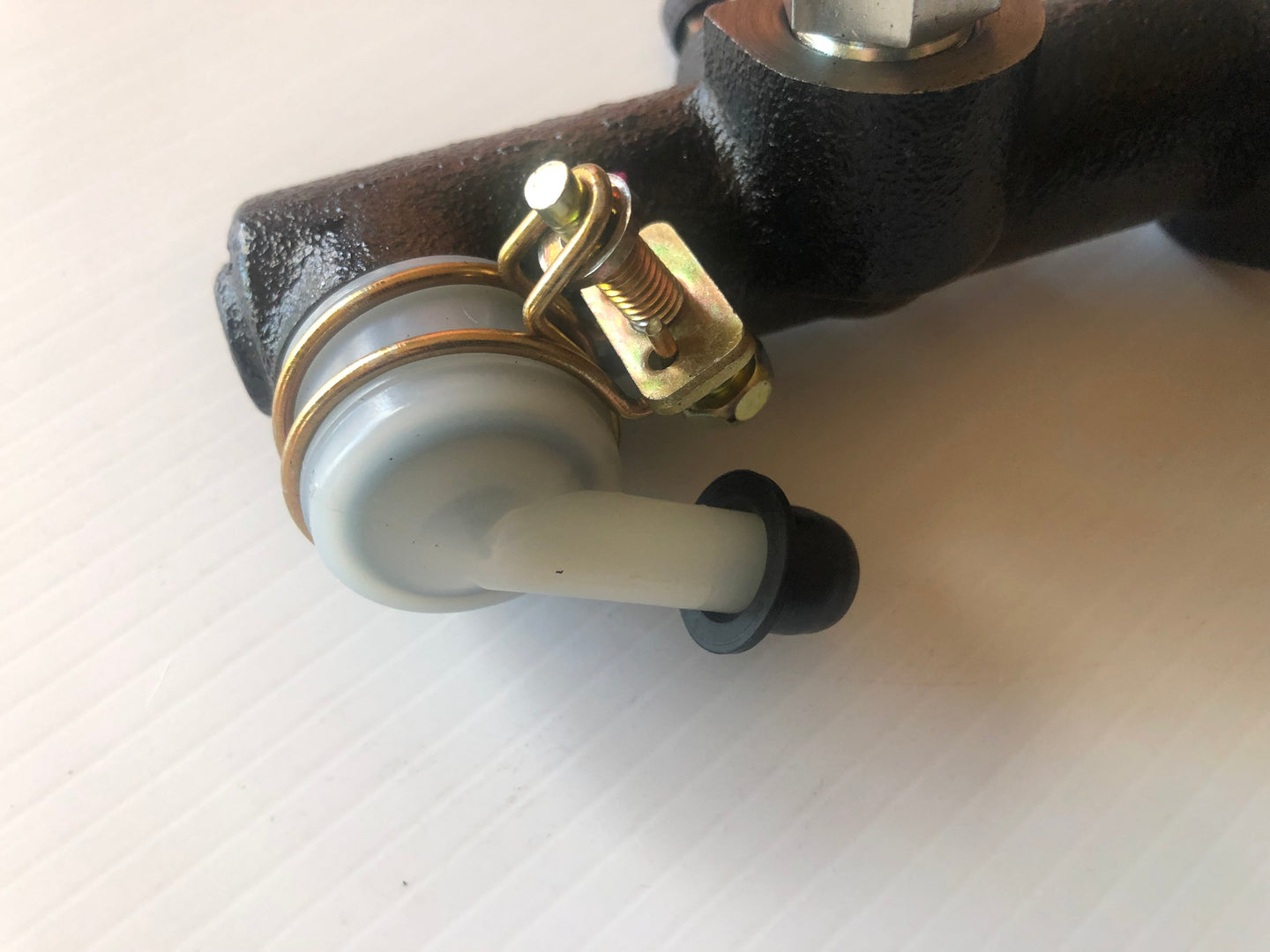

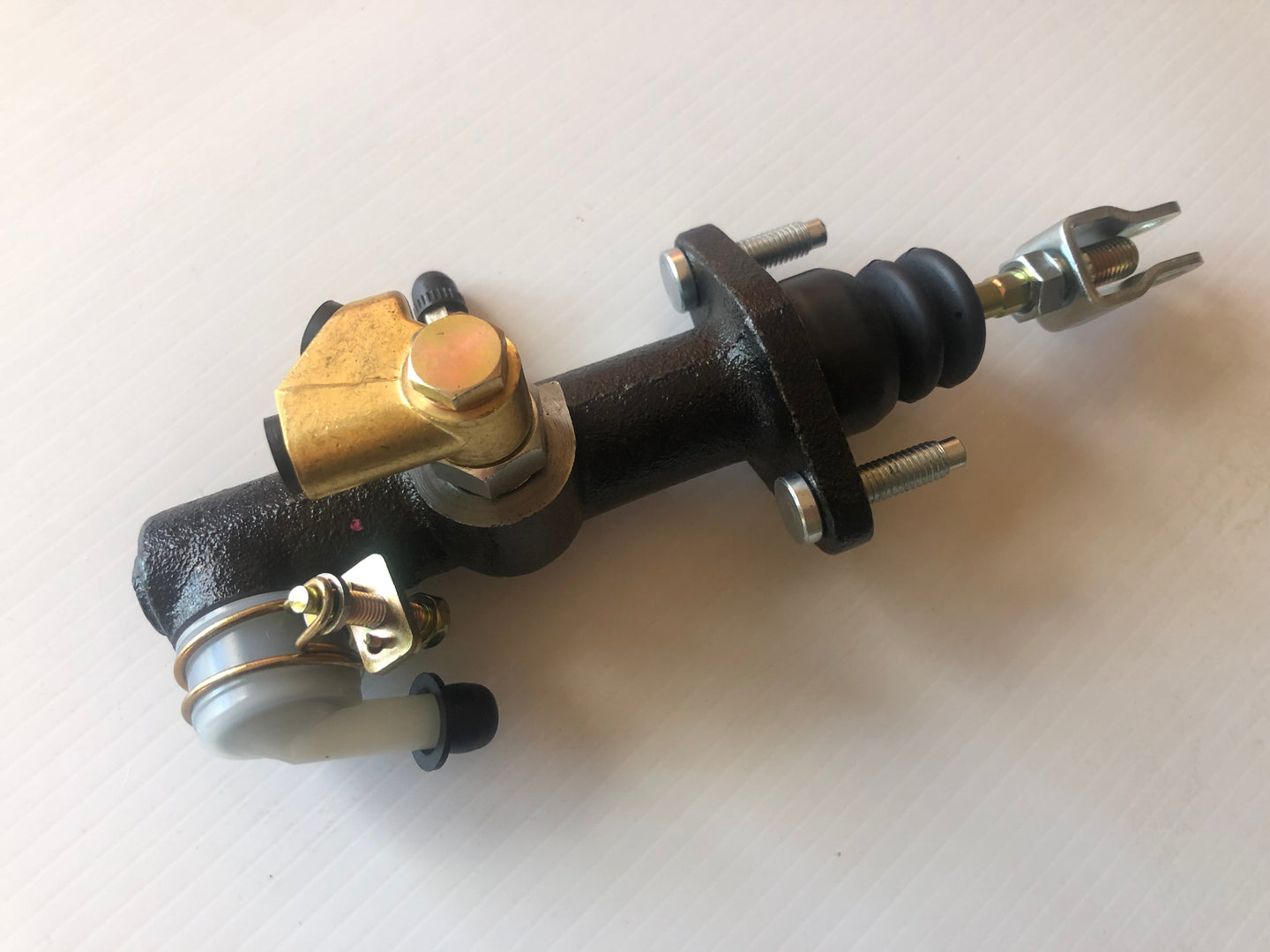

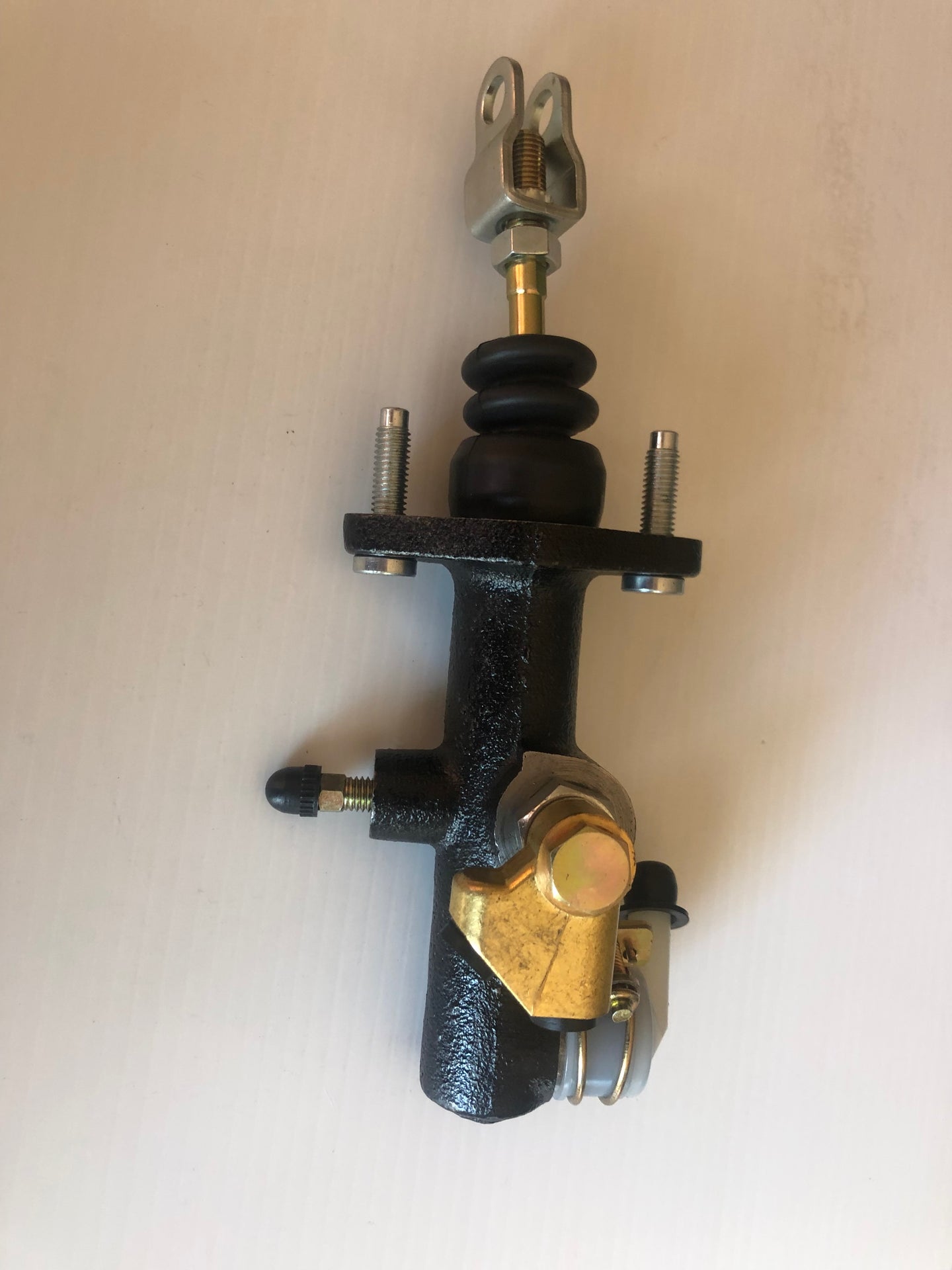

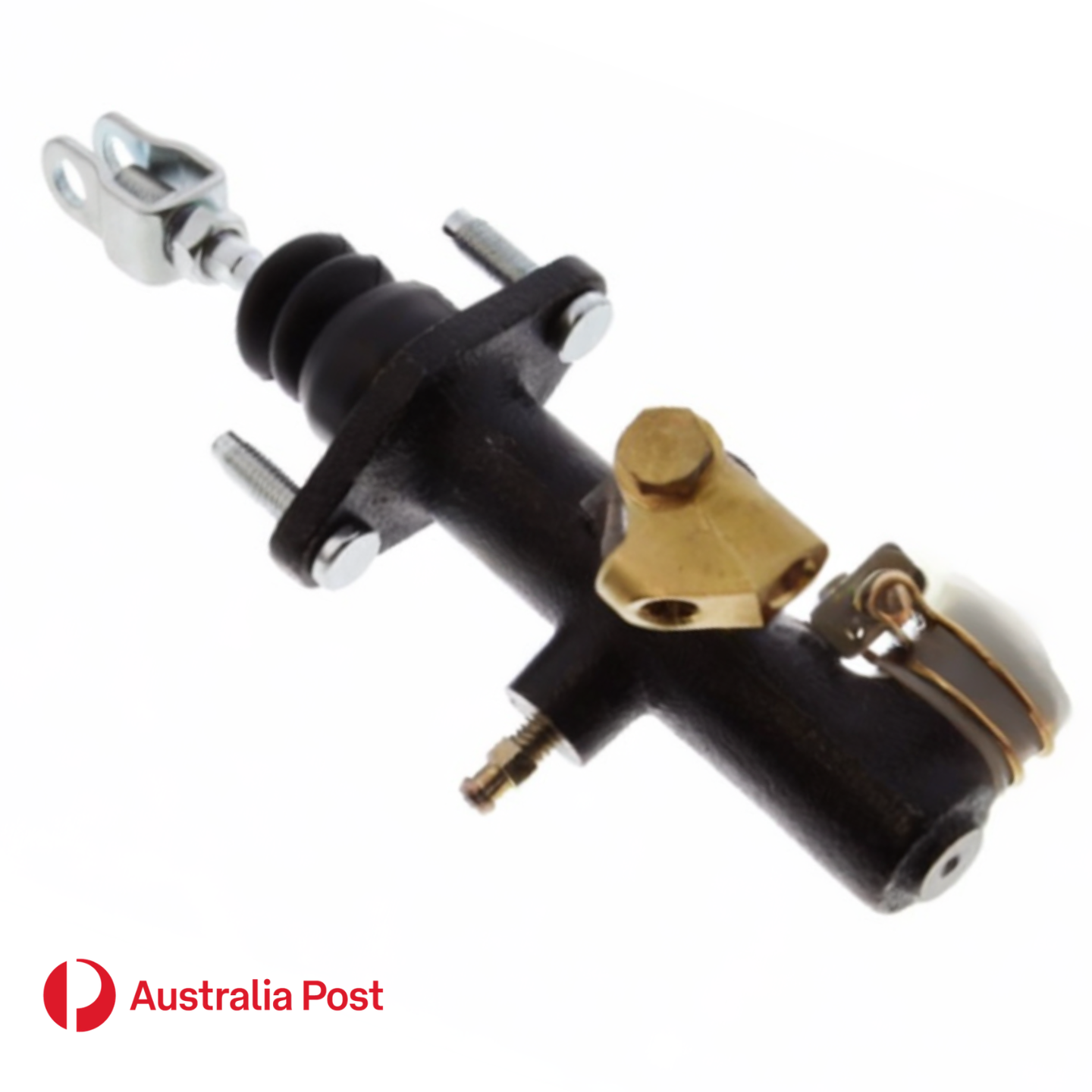

Brake Master Cylinder – Toyota 5, 6 & 7 Series Forklift 1.5–1.8t | 19mm Bore

Brake Master Cylinder – Toyota Forklift 5, 6 & 7 Series (1.5–1.8t)

A precision-engineered brake master cylinder from CPM, designed as a direct replacement for Toyota FG/FD Series forklifts in the 1.5 to 1.8 tonne capacity range. Supplied complete with pushrod for a straightforward, ready-to-fit installation. Built to OEM specification for consistent braking performance and long service life.

Compatibility

• Suits Toyota Forklifts: 5, 6 & 7 Series (All)
• Capacity: 1.5t to 1.8t
• Supplied complete with pushrod

Specifications

• Brand: CPM
• Flange Type: TY-FL B
• Bore Diameter: 3/4" (19.05 mm)
• Total Length: 143 mm
• Smallest Centre Distance: 60 mm
• Neck Diameter: 32 mm
• Number of Exit Ports: 1 (AT-PR)
• Fluid Type: Brake Fluid (R-H)

Why This Part?

The included pushrod means no hunting for additional components — this is a complete, ready-to-install assembly. Ideal for scheduled brake overhauls or emergency replacements on Toyota light-capacity forklifts. Confirm your series and tonnage rating before ordering.
