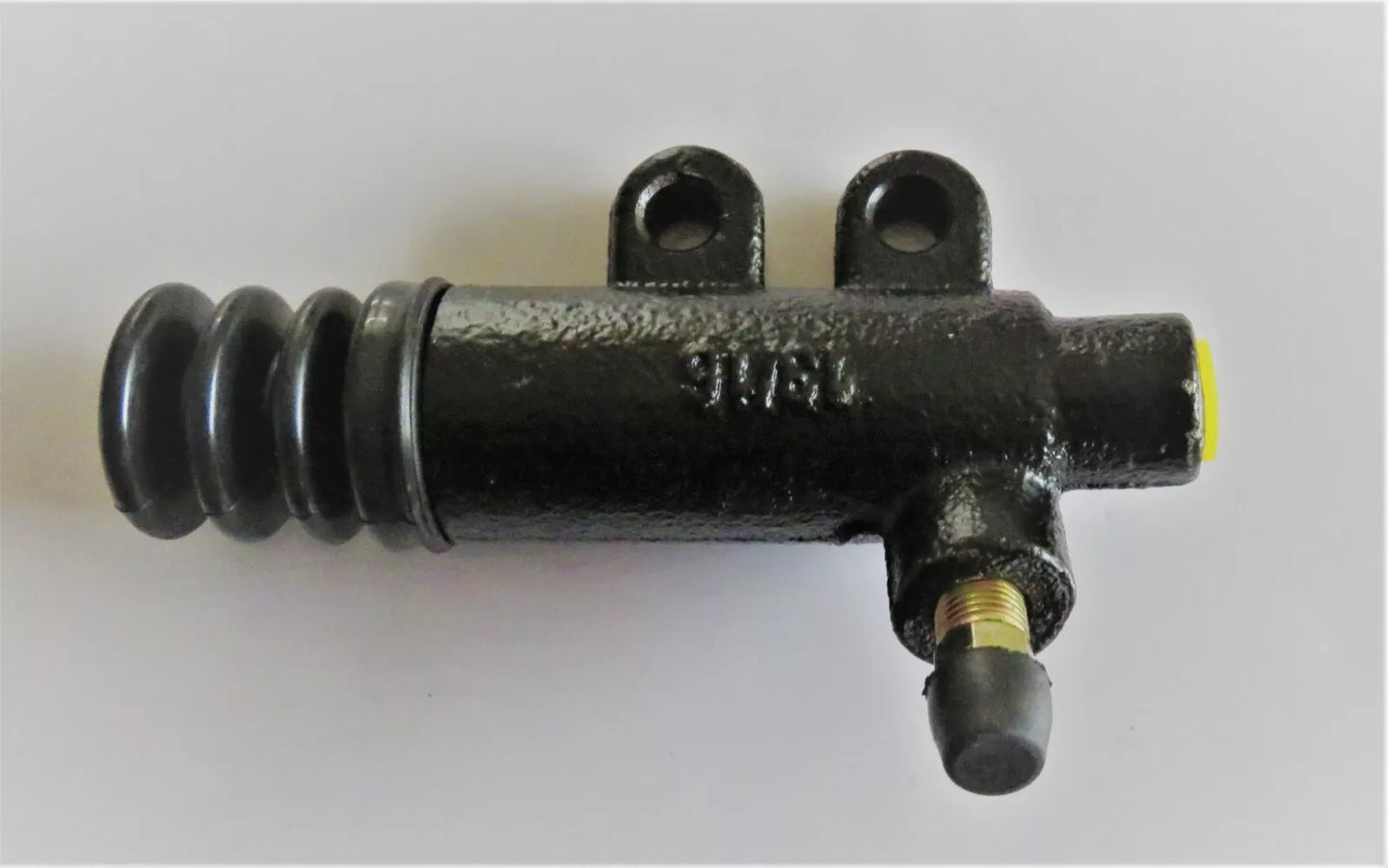

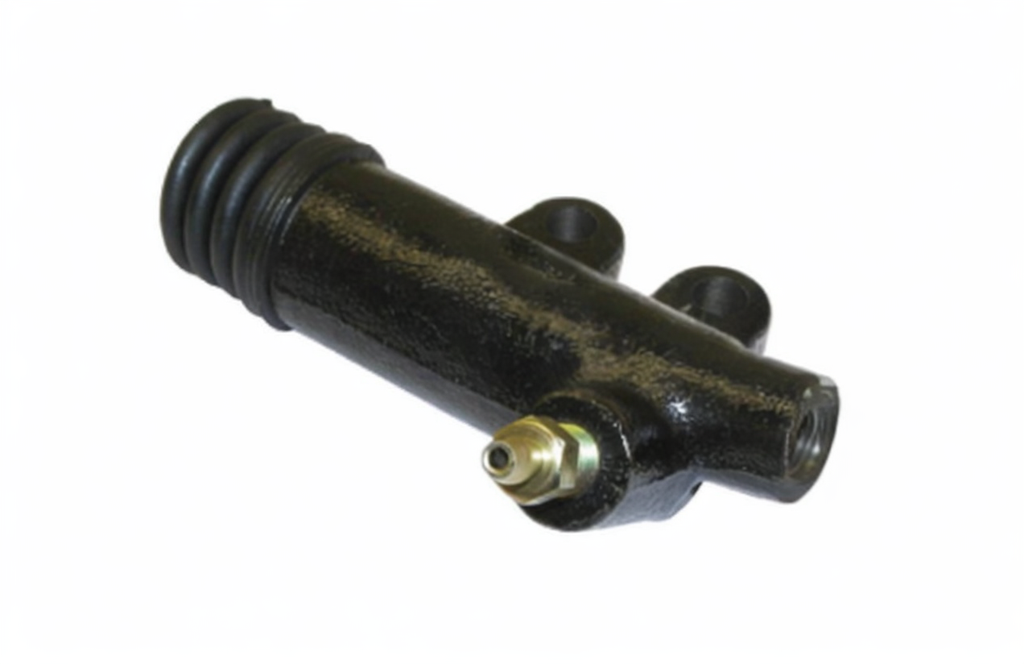

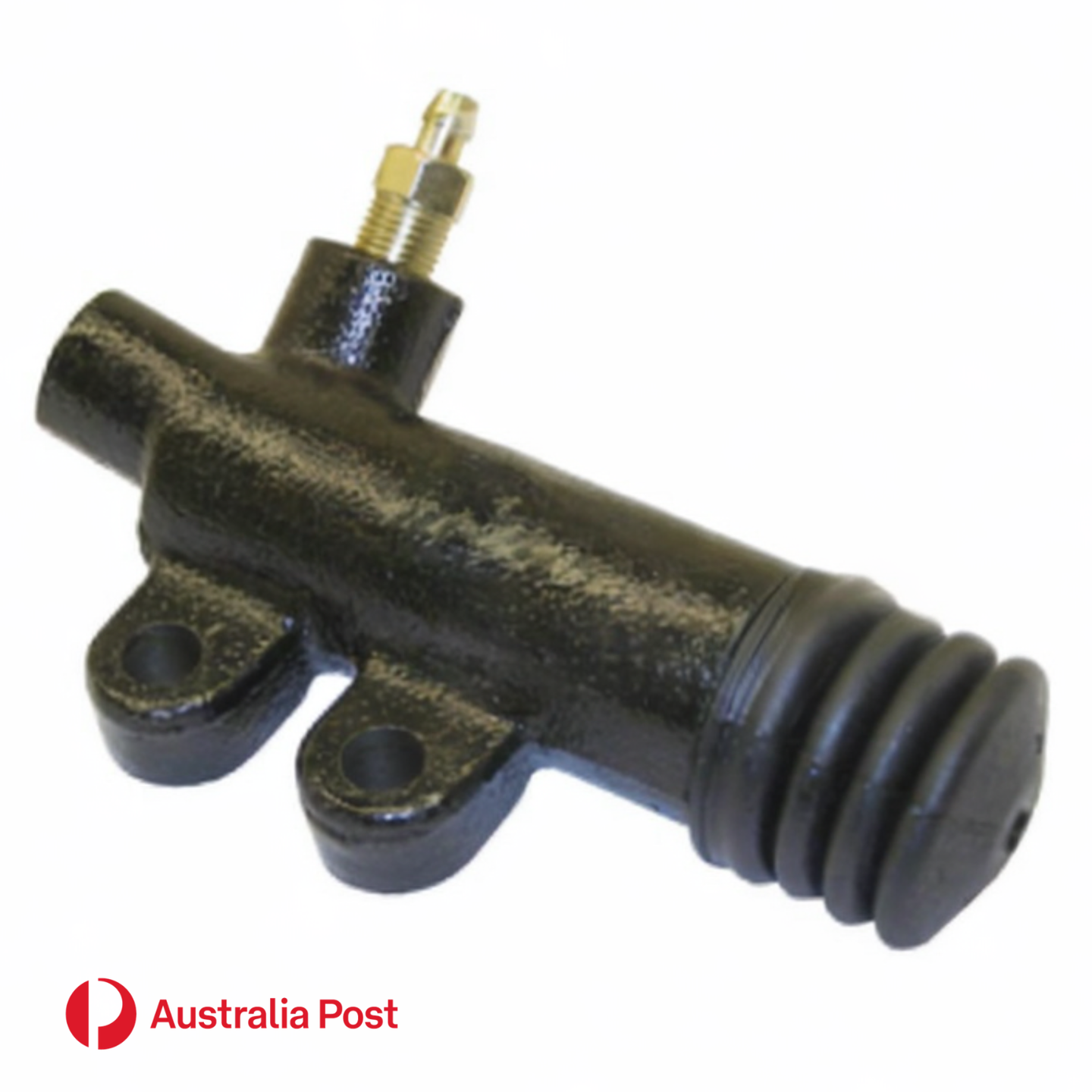

Clutch Release / Slave Cylinder – Toyota 5, 6, 7 Series FG/FD (Models 10–30)

Clutch Slave / Release Cylinder – Toyota Forklift 5, 6 & 7 Series FG/FD

Keep your Toyota forklift operating at peak performance with this precision-engineered clutch slave cylinder from CPM. Designed as a direct replacement for Toyota FG/FD Series forklifts (Models 10–30), this cylinder delivers reliable hydraulic actuation and extended service life — exactly what demanding workshop and fleet environments require.

Compatibility

• Suits Toyota Forklifts: 5, 6 & 7 Series FG/FD
• Models: 10 to 30
• OEM Part Number: 31420-13000-71

Specifications

• Brand: CPM
• Flange Type: TY-FL
• Bore Diameter: 13/16" (20.64 mm)
• Total Length: 91 mm
• Smallest Centre Distance: 28 mm
• Neck Diameter: 29.5 mm
• Number of Exit Ports: 1 (AT-PR)
• Fluid Type: Brake Fluid (R-H)
• Thread Size: M10
• Metric Pitch: 1 mm

Why Choose This Part?

Sourced to OEM specification, this clutch slave cylinder is built for the rigours of industrial forklift operation. Whether you're a fleet manager scheduling preventive maintenance or a workshop technician completing a clutch overhaul, this is the part that gets the job done right — first time.
