Wheel Cylinder – Toyota 5, 6 & 7 Series Forklift 1.5–1.8t | LHS & RHS | 22mm

Wheel Cylinder – Toyota Forklift 5, 6 & 7 Series (1.5–1.8t)

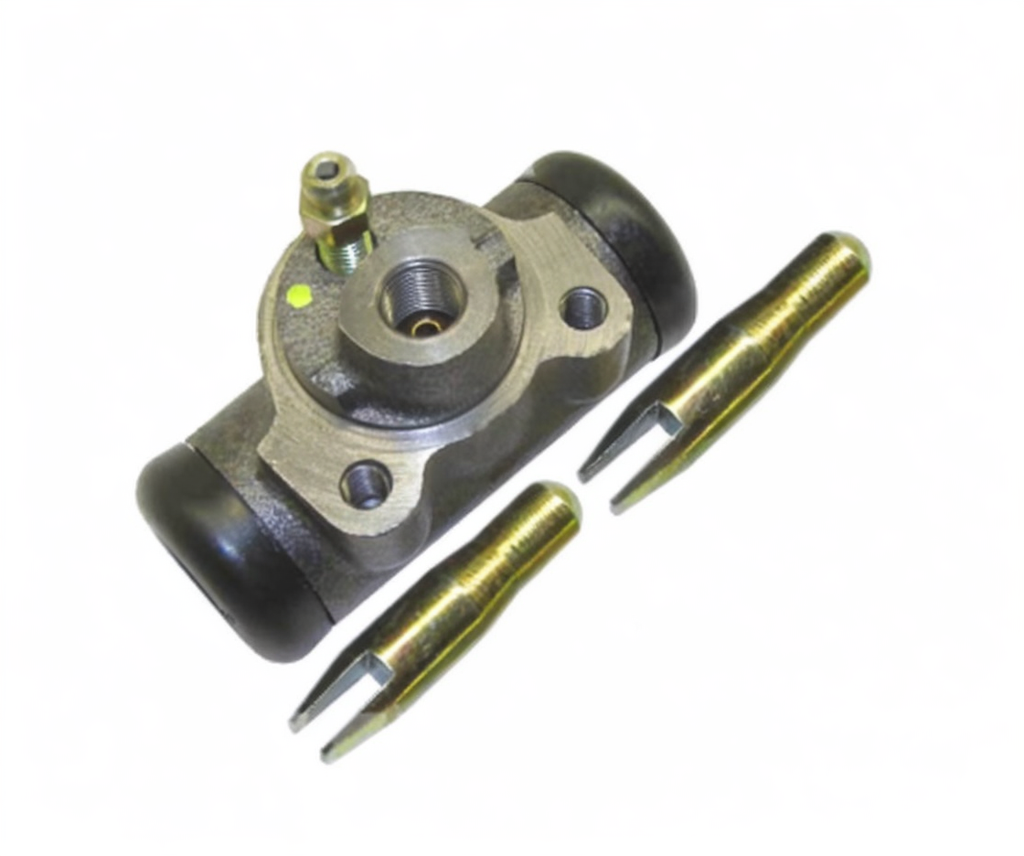

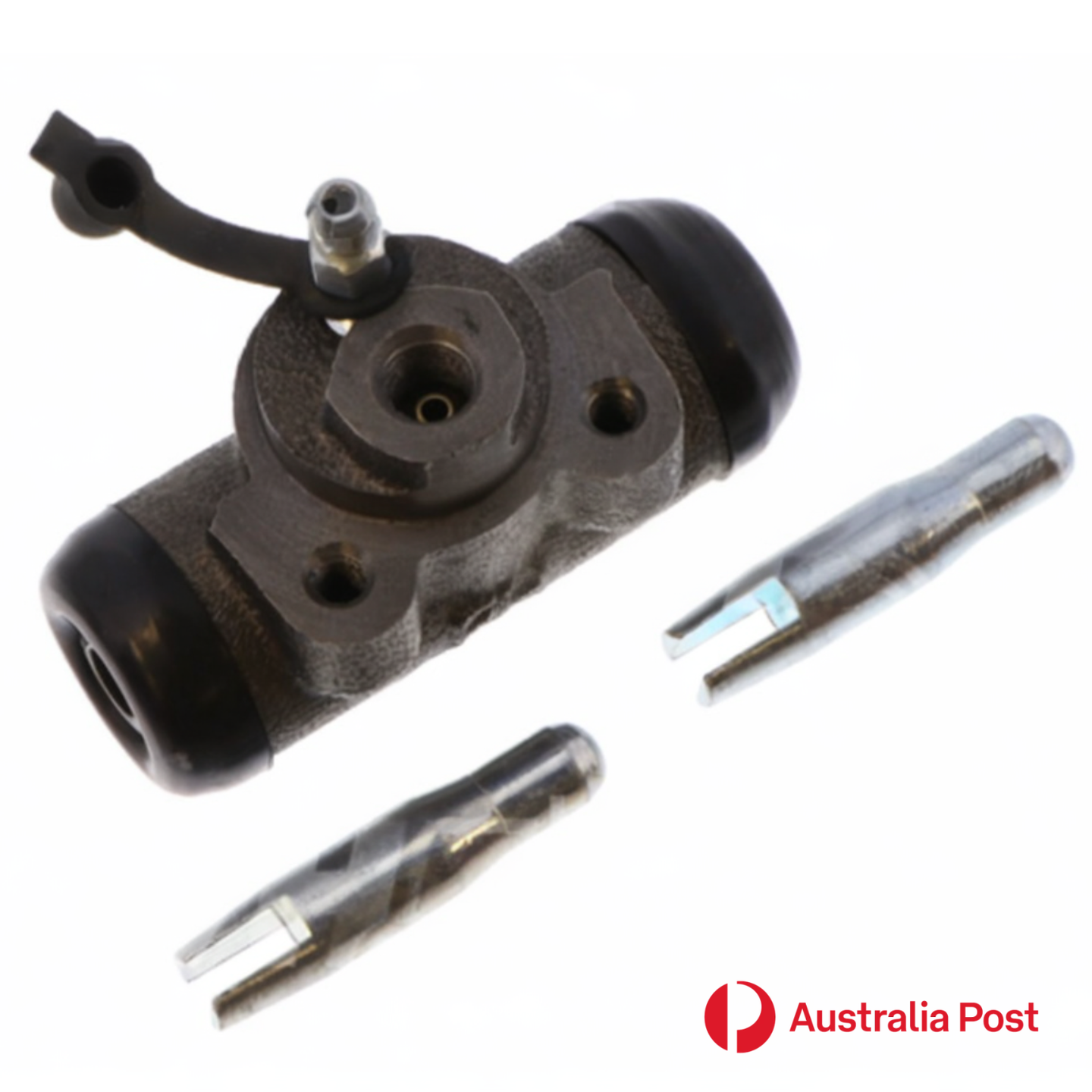

A precision-engineered brake wheel cylinder designed as a direct OEM replacement for Toyota 5, 6, and 7 Series forklifts in the 1.5 to 1.8 tonne range. This neutral-type cylinder suits both left-hand and right-hand sides, simplifying your parts inventory — one part number covers both positions.

Compatibility

• Suits Toyota Forklifts: 5, 6 & 7 Series
• Capacity: 1.5t to 1.8t
• Fitment: LHS & RHS (Neutral type)

Specifications

• Bore Diameter: 7/8" (22.22 mm)
• Length: 72 mm
• Neck Diameter: 30.3 mm
• Neck Height: 14 mm
• Number of Fixation Holes: 2
• Smallest Centre Distance: 35 mm
• Thread Size (Main): M10 x 1mm pitch
• Thread Size (Secondary): M6 x 1mm pitch
• Inlet with Taper: Yes
• Exit with Taper: No
• Pin Type: Type AT
• Fluid Type: Brake Fluid

Why This Part?

The neutral LH/RH fitment means a single unit covers both sides of the axle, reducing the number of part numbers you need to stock. Confirm your Toyota series and tonnage rating before ordering.
